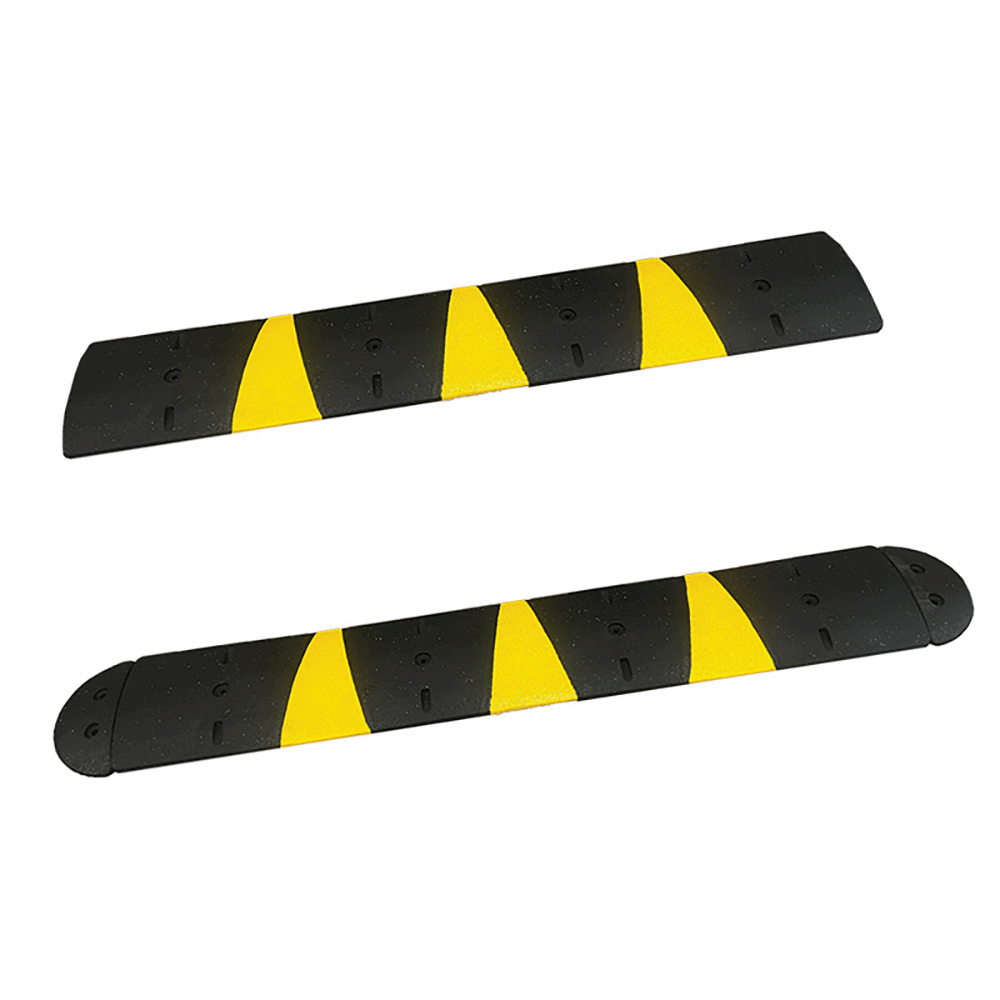

6 Standard Rubber Speed Bump
Protect pedestrians, reduce vehicle speeds, and slow traffic with this sturdy 6 speed bump. Recycled rubber construction wont chip, crack or crumble. Model has a channeled bottom for drainage. Recommended for parking lots, business entrances, apartment complexes, and residential roads.
Features:
- For use in low traffic areas going 5 mph or less.
- Aggressive 2.5 High bump slows traffic 1-5 mph.

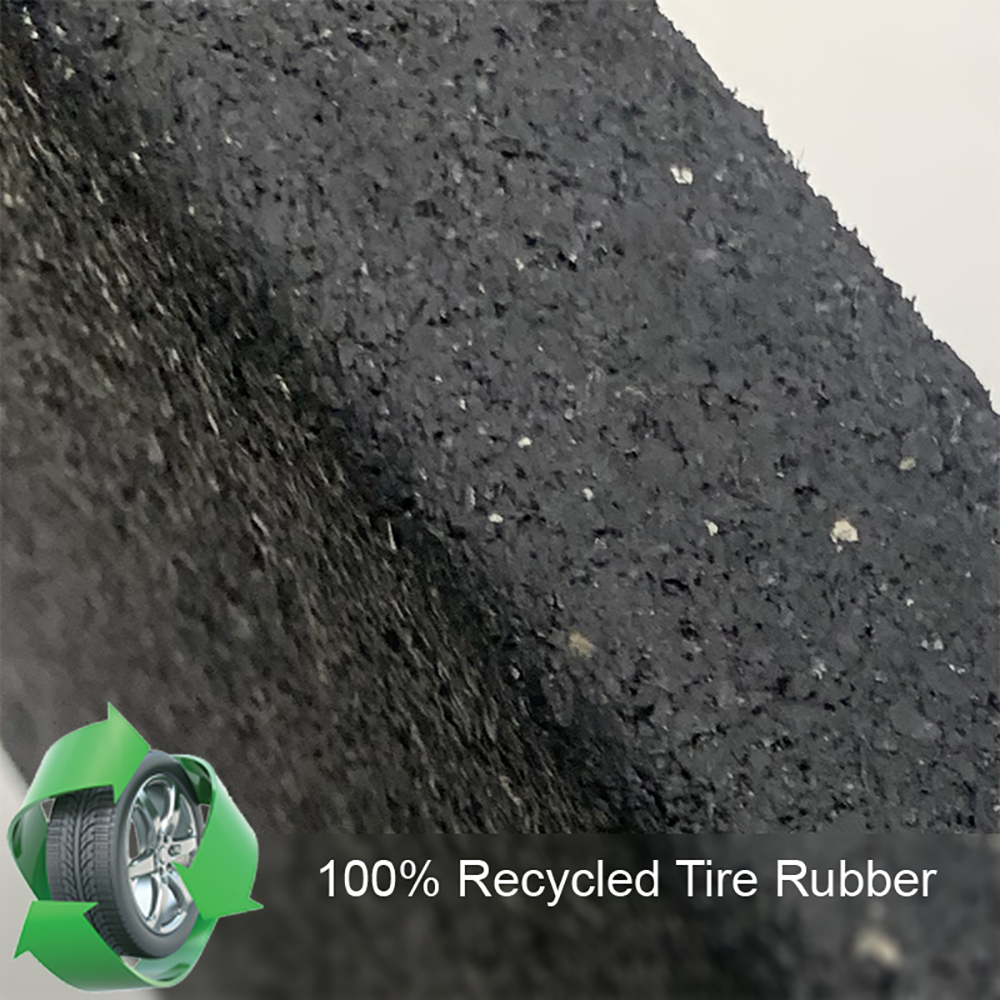

- Recycled rubber wont chip, crack or crumble.
- Resistant to weather, oil, salt, and moisture.
- Protected from UV light.
- Molded-in, reflective yellow tape stripes.
- Flexible rubber conforms to surface contours.

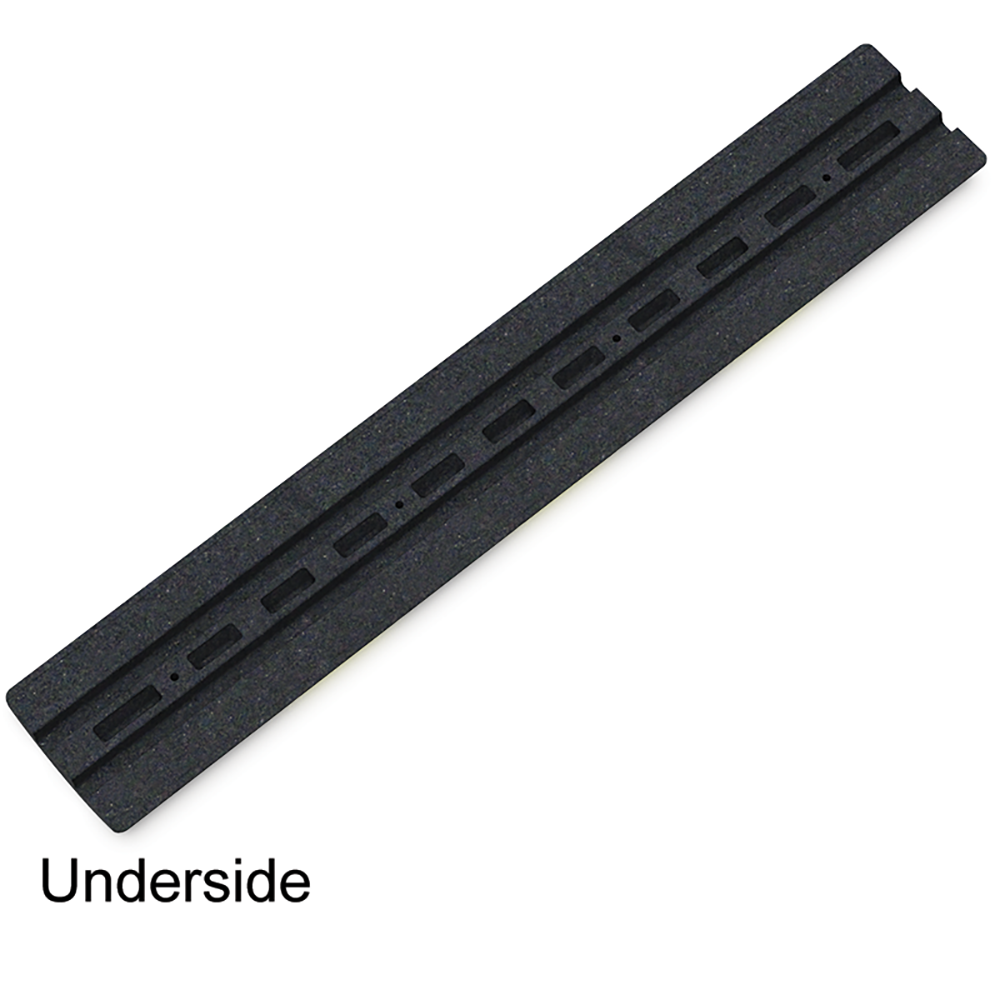

- Dual bottom channels for drainage or to protect wire, hose, or pipe.
- Installs on asphalt or concrete.
- Join multiple middle sections together to create length needed; finish with end caps.
- Can be cut to size with a utility knife.
- Weight bearing capacity of 44,000 lbs. per axle.
- Made in the USA.
Options:
- Concrete or asphalt installation hardware available (sold separately, and in a kit). Use 10 ounce of epoxy or construction adhesive (i.e., Polyurethane PL Premium) for installations where no hardware is allowed.

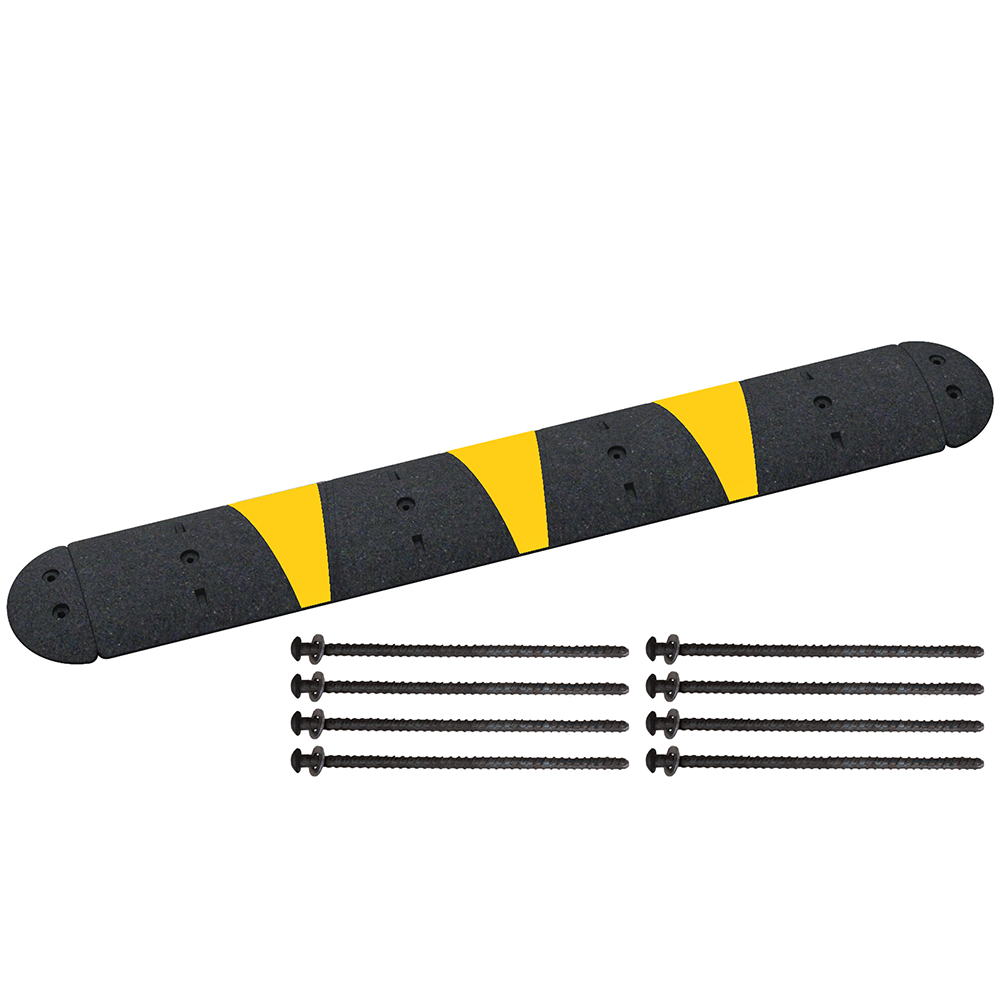

- Available as a kit with hardware and end caps.
- Optional

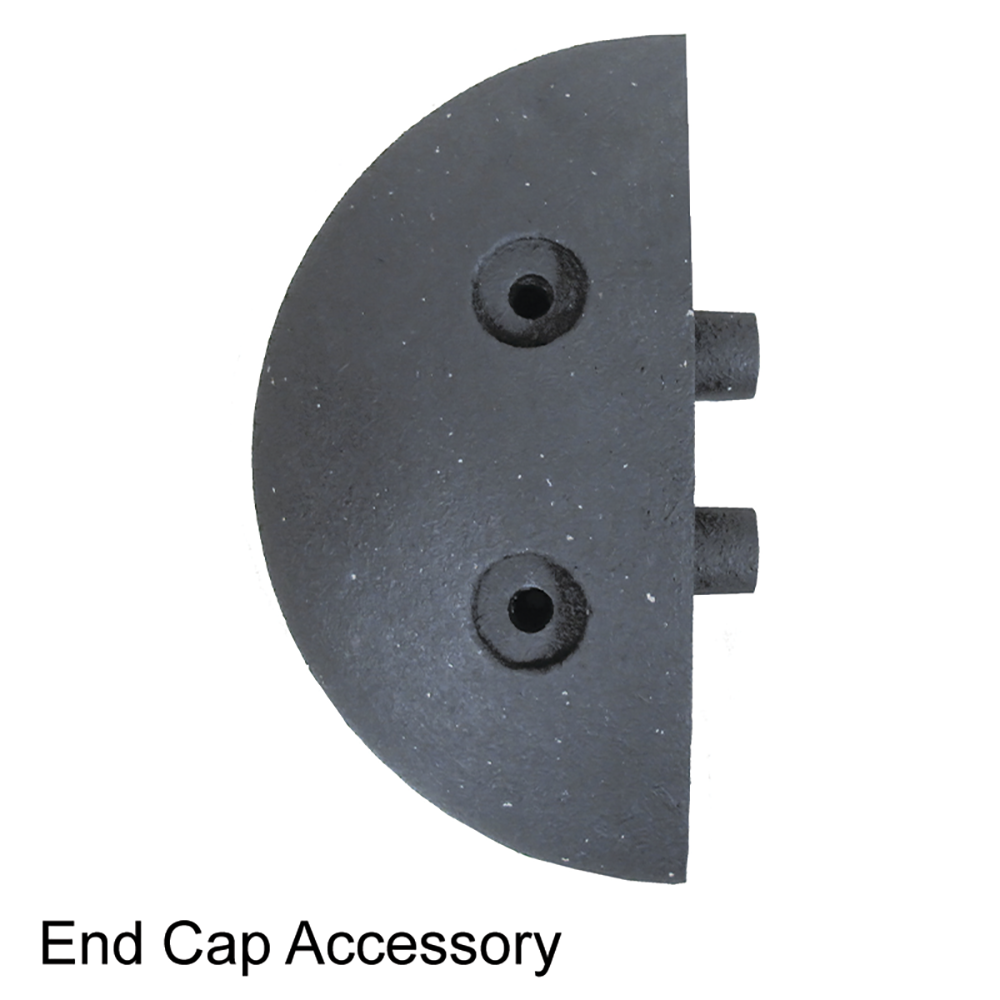

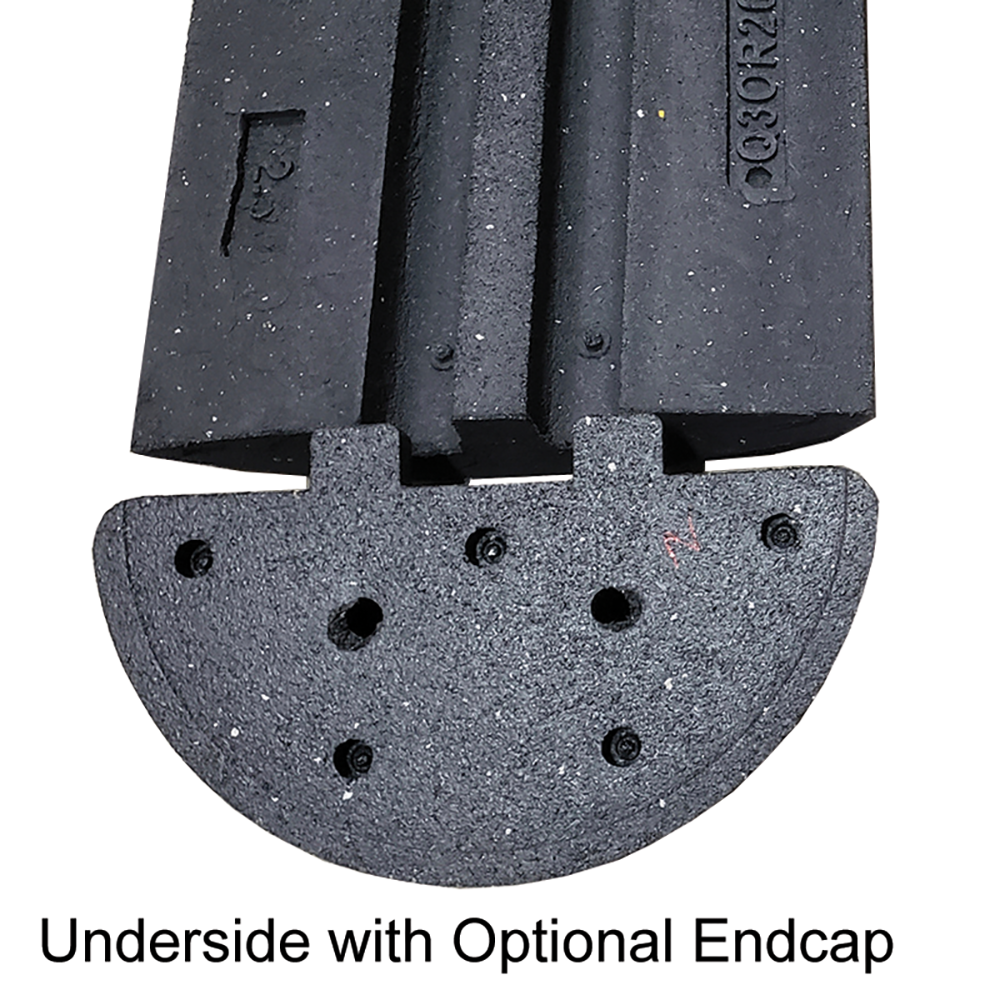

End Caps (sold separately, and in a kit).
- Speed Bump also available in a gentler
Low Profile (2 High) option.

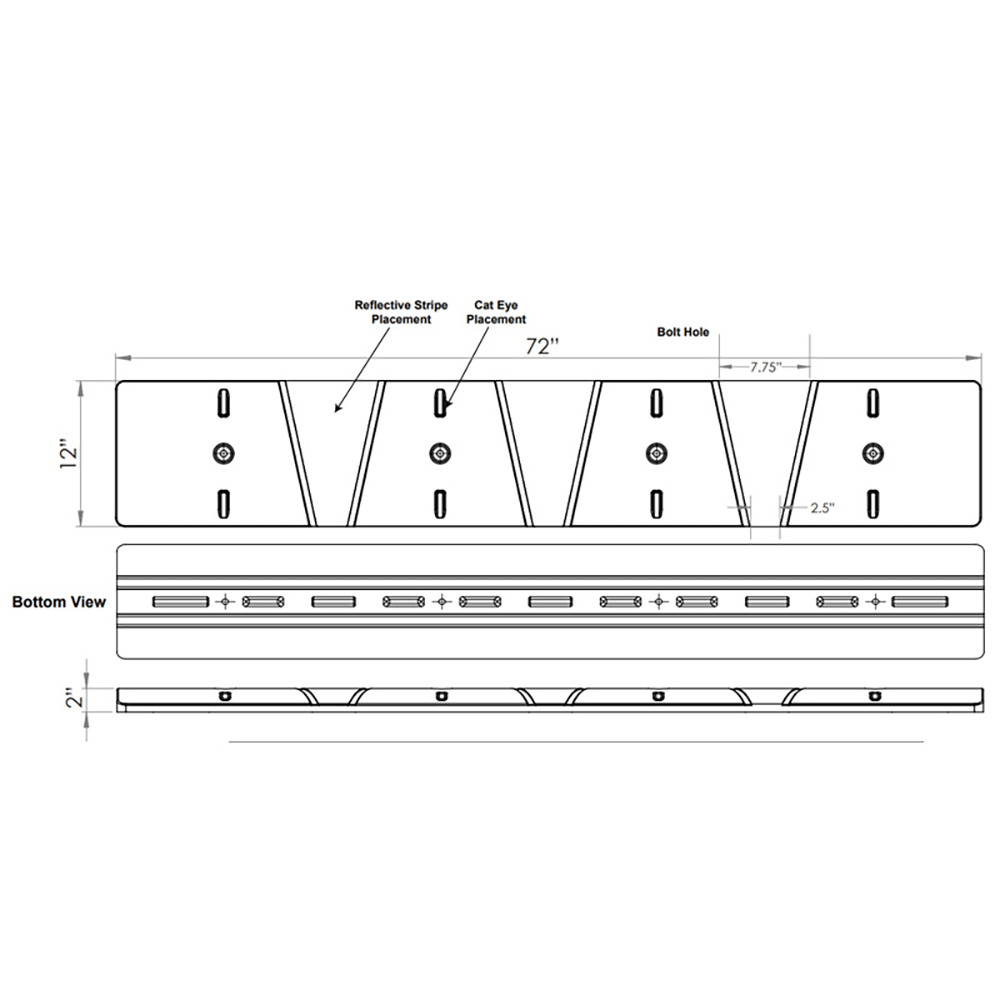

Specifications:
Overall dimensions (without end caps)
|
72 L x 12 W x 2.5 H
|
Stripes
|
3 yellow
|
Installation holes
|
4
|
Speed bump weight (without end caps)
|
52 lbs.
|
End cap weight
|
3.5 lbs.
|
End cap dimensions
|
7" L x 12" W x 2.5" H
|
End cap installation holes
|
2
|
Resources:
6 Speed Bump Specifications
Speed Bump Installation Instructions
Speed Bumps, Speed Humps & Car Stops Flyer
Rubber Speed Bump and Hump Comparison:
|
|
|
|
|
Description
|
Premium 6' Textured Rubber Speed Bump
|
Low Profile Speed Bump
|
Standard 6' Rubber Speed Bump
|
Premium Textured Speed Hump
|
Item Number
|
PAB-SP
|
SB72-2H
|
SB72N
|
PAH-SP
|
Height |
2" |
2" |
2.5" |
2" |
Length x Width (nominal) |
72" L x 12" W |
72" L x 12" W |
72" L x 12" W |
19" L 35" W |
Material |
Vulcanized Rubber (textured, shiny surface). Best in terms of resistance to aging, abrasion, and temperature. |
Molded using crumb rubber from recycled tires ♲ |
Molded using crumb rubber from recycled tires ♲ |
Vulcanized Rubber (textured, shiny surface). Best in terms of resistance to aging, abrasion, and temperature. |
|
|
|
|
|
Application |
Alleys and Low Speed Roadways - Holds up in heavy traffic (<20 mph) |
Alley and Low Speed Roadways |
Best for Parking Lots - Can also be used on Low Speed Roadways |
Heavy traffic & low speed roadways |
Effect |
Slows traffic to less than 5 mph |
Slows traffic 1-5 mph |
Slows traffic the most - 2-5 mph |
Gentler than speed bumps |
Yellow Strips |
5 (non-wearing, molded-in, synthetic rubber) |
3 (molded-in reflective tape) |
3 (molded-in tape) |
6 (non-wearing, molded-in, synthetic rubber) |
Cat Eye Nighttime Reflectors |
8 (included) |
8 (optional) |
8 (optional) |
None |
Speed bump weight (without end caps) |
52 lbs. |
40 lbs. |
52 lbs. |
38 lbs. |
End cap weight |
3.5 lbs. |
3.5 lbs. |
3.5 lbs. |
14 lbs. |
Installation holes (without end caps) |
4 |
4 |
4 |
6 |
Installation holes (endcaps) |
2 |
2 |
2 |
3 |
Installation holes (endcaps) |
2 |
2 |
2 |
3 |
Cut with utility knife |
No |
Yes |
Yes |
No |
Made in the USA |
No |
Yes |
Yes |
No |
