Type III Barricade Kit (Angle Iron Uprights & Feet) - 6’ Boards
This Type III barricade constructed with angle iron uprights and feet is ideal for detours and closing and other types of traffic control. Type III Barricades are larger and more visible than Type 1 or Type 2 and have three reflective panels. Long-lasting plastic boards will not rot like traditional wood boards. Uprights have pre-drilled holes to easily attach plastic boards and barricade lights. Select your choice of 3M™ retroreflective sheeting. Kit includes 2 bases, 2 uprights, three 6' boards, and all hardware needed for assembly.

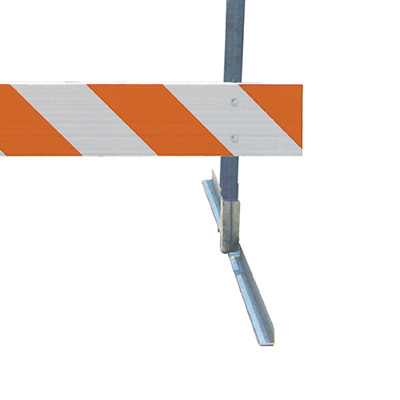

Posts and feet are made of galvanized, 10-gauge iron to ensure high strength and durability.
Angle iron offers a more economical option compared to steel.
Eliminate broken boards with all-plastic boards that never rust, rot, chip, fade, splinter, or need painting.
Boards feature a hollow core extruded design with internal walls to provide lightweight strength and durability.
Stripes on sheeting are 6" wide. Produced with right diagonal sheeting when only one side is sheeted. When two sides are sheeted, one side is left diagonal while the other is right diagonal.
Reinforced bolt/rivet holes in boards.

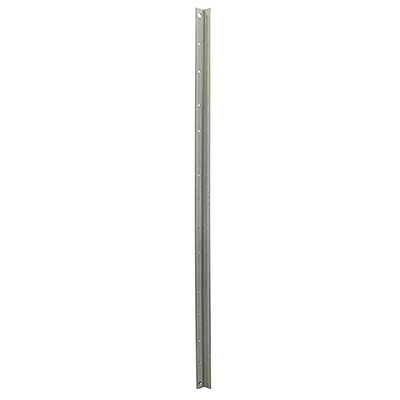

Each upright accepts a barricade light (sold separately) for extra visibility.
Meets MUTCD Standards.
Made in USA.
Boards can be sheeted on one side or both sides using 3M striped sheeting in Engineer Grade (visible up to 500 ft.), High Intensity Prismatic (visible up to 1000 ft.), or Diamond Grade (visible up to 1500 ft.) call to quote Diamond Grade option.
