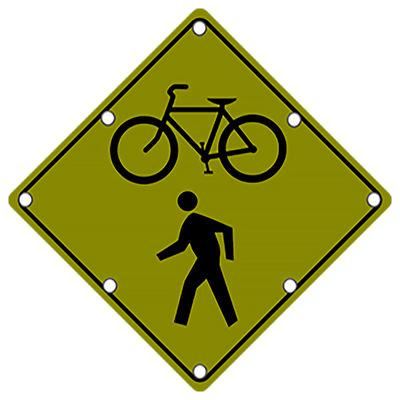

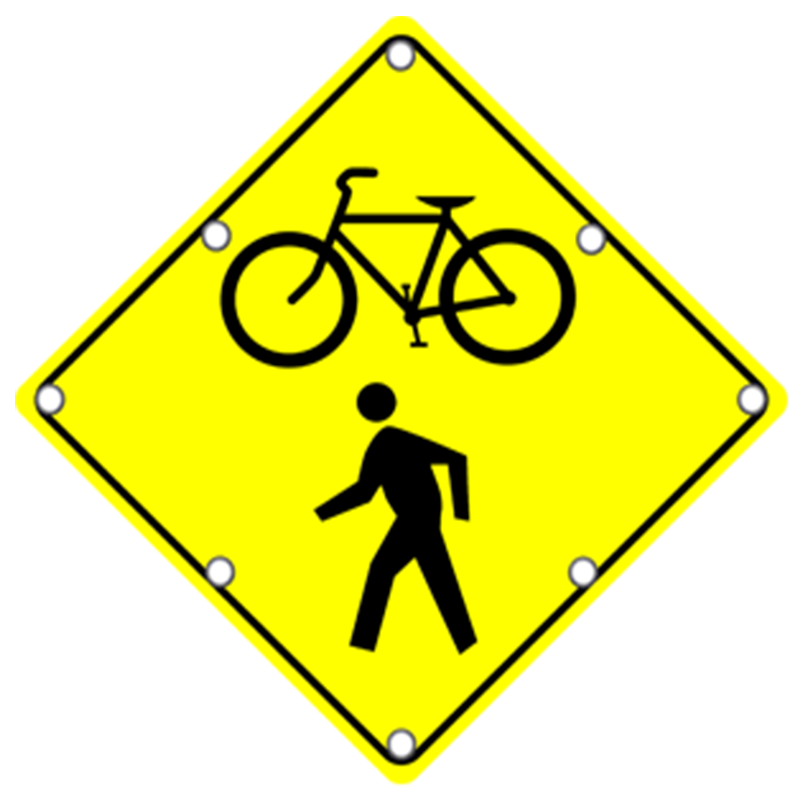

The bicycle and pedestrian symbol crossing sign provides drivers with an early warning of a potential pedestrian or bicycle crossing ahead. Ask drivers to slow down and be on the look-out for pedestrians and cyclists entering and exiting the road. Using our innovative LED technology, the system employs a set of eight synchronized high-intensity LEDs. LEDs extend the range of visibility of the sign during the day or night in all weather conditions. Furthermore, driver awareness of the sign increases because the LEDs are flashing. Sign conforms to the specifications of the Federal Highway Administration (FHWA) set forth in the Manual on Uniform Traffic Control Devices (MUTCD).
All options can only be selected at the initial configuration and cannot be changed later in the field. Option prices are not included in price shown on this page; call for quote.
All push button options utilize the Campbell 4EVR MOAB Button, the toughest button on the market. Note: These push buttons control only one sign. If multiple signs are to be used in concert with one another, additional software option package required. Call for details.
|Push Button Options||Description||Item Number|
|Standard Push Button||Button pushed by pedestrian to make LEDs flash.||BUTTON|
|Deluxe Push Button||Same as Standard Push Button but adds a 9" x 12" “PUSH BUTTON TO TURN ON WARNING LIGHTS” sign (R10-25).||DELUXE|
|Confirmation Push Button||Same as Standard Push Button but adds a flashing red LED and an audible “Dee-dah” feedback once button is pushed.||CNFBUTTON|
|Deluxe Confirmation Button||Same as Confirmation Push Button but adds the same 9” x 12” sign shown above (R10-25).||DELCNFBUTN|
Signs come standard with continuous 24/7 flash.
|Timer & Sensor Options||Description||Item Number|
|Standard Timer||Timer allows the sign to be programmed to flash at specific times, every day. Example: the sign is timed to flash on at 8 -10 AM and again at 8-10 PM, 7 days per week.||TIMERSTD|
|Deluxe School Zone Timer||Works as the Standard Timer does but adds the ability to be programmed to have specific days that the sign will not flash. Example: weekends, holidays, late starts, early releases, institute days, and school holidays.||DELUXETIMER|
|Dusk-To-Dawn Sensor||Sign comes standard with continuous 24/7 flash. Add a Dusk-to-Dawn Sensor, and LEDs will only illuminate from dusk to dawn and not turn on and flash during daylight hours.||DUSKZ|
