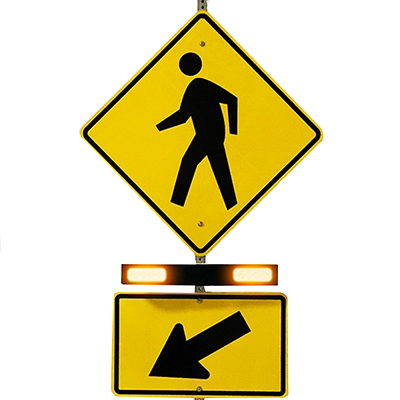

Rectangular Rapid Flash Beacon (RRFB)

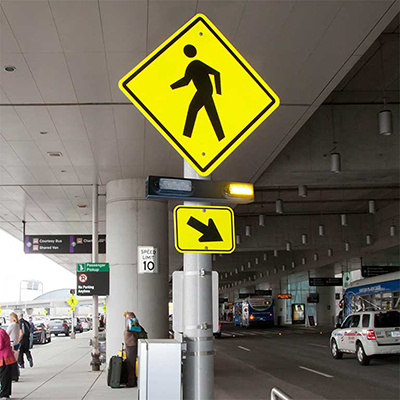

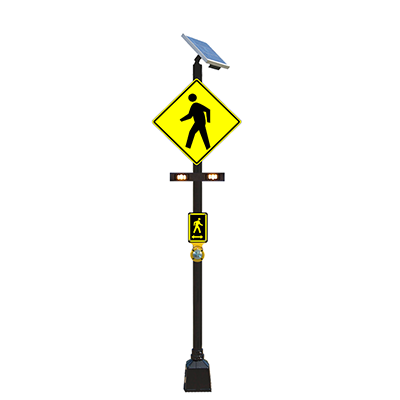

Rectangular Rapid Flashing Beacons (RRFB) provide high visibility to motorists approaching pedestrian crosswalks or school crossings. They enhance safety by reducing crashes between vehicles and pedestrians at uncontrolled approaches, mid-block crossings, trail crossings, and unsignalized intersections. The quick flash pattern and high intensity lights make them easily visible even with headlight glare, wet roads, and other problematic nighttime lighting conditions. Fits easily onto existing signposts, and can be installed with minimal traffic disruptions. The Single Sided RRFB faces one direction.
- Great for mid-block crosswalks, trail crossings, and unsignalized intersections.
- Keyed On/Off Switch.
- LED life expectancy of over 100,000 hours.
- Lockable control cabinet.
- Beacon(s) will flash after push button is pressed.
- Meets the Manual on Uniform Traffic Control Devices (MUTCD) requirements for all approved flash patterns.
- Made in the USA.

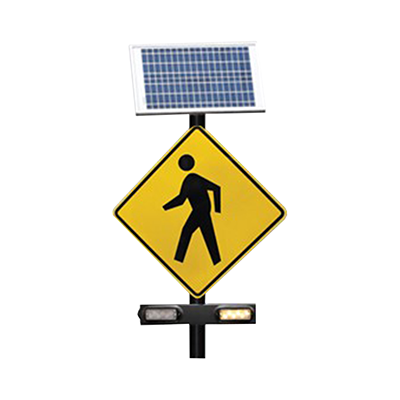

- Solar panel
- Rechargeable battery
- Control cabinet
- Pole mounting hardware
- Standard Push Button with Wireless Communication
- NOT INCLUDED: Pole
- SOLD SEPARATELY: Signs & activation button upgrades

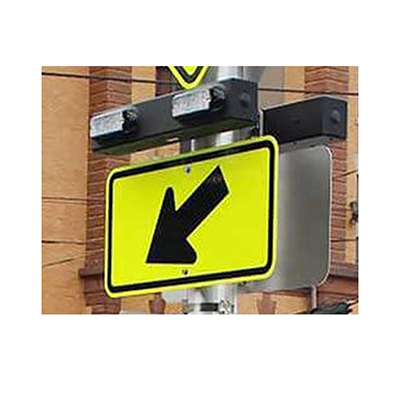

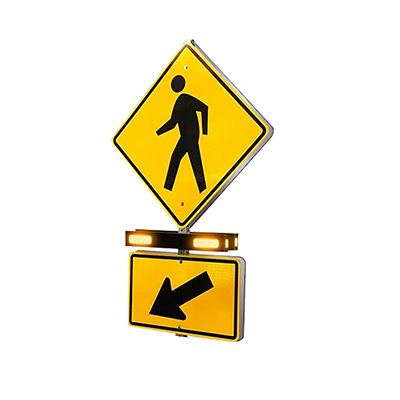

- Single-sided or double (mounted back-to-back)
- Optional pedestrian confirmation light mounts on left or right side of light bar.

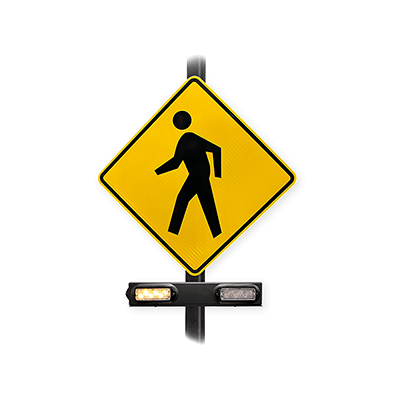

Pedestrian Crossing Sign
School Crossing Sign
(signs sold separately). 30” or 36” diamond signs recommended. RRFB’s cannot be used in conjuction with LED flashing signs.
Push Button Options:
RRFBs come standard with the Standard Push Button with Wireless Communication. Button upgrades available as described below. Call for details.
Push Button Options

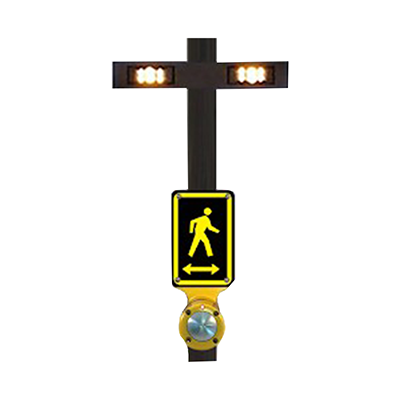

Standard Push Button
Button pushed by pedestrian to make LEDs flash.
n/a (comes standard with RRFB)
Deluxe Push Button
Same as Standard Push Button but adds a 9" x 12" “PUSH BUTTON TO TURN ON WARNING LIGHTS” sign (R10-25).
Confirmation Push Button
Same as Standard Push Button but adds a flashing red LED and an audible “Dee-dah” feedback once button is pushed.
Deluxe Confirmation Button
Same as Confirmation Push Button but adds the same 9” x 12” sign shown above (R10-25).

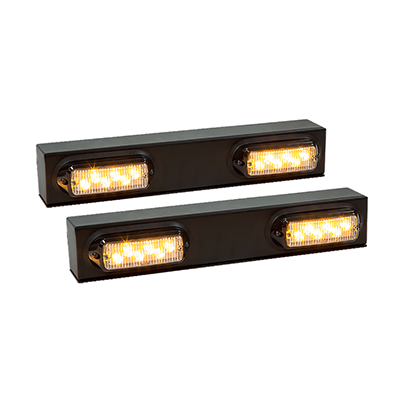

- Dimensions: 24.5" L x 2.25" W x 4" H
- Weight: 5lbs.
- Construction: .080 highway grade aluminum/stainless fasteners
- Color: yellow LED RRFB lights
- Locking cabinet: 10.54" x 12.54" x 7.35"
- Locking cabinet weight: 6 lb.
- Solar Panel: 20W 22.68" L x 14.06" W x 1.18" H (6.17 lb.)
(Do not install where sunlight is blocked by trees, buildings, or other structures.)
- 12-volt sealed lead acid (SLA) battery included (12V22 AH)
- Up to a 2 to 4-year battery life, but replacement after 18 months is recommended.
Rectangular Rapid Flash Beacon (RRFB) Specifications
Battery Replacement Instructions
- 10 Year - Solar Collector Panel
- 5 Year - Sign Construction
- 2 Year - PCB/LED Technology
- 1 Year - Battery
