Standard Guardrail System - 2 Line

Standard Guardrail System - 2 Line
Additional Images to View
Item Number: SGR-2
  Be the first to review this item

Select Size/Color/Options:
Please request a quote for shipping >>

Detailed Description

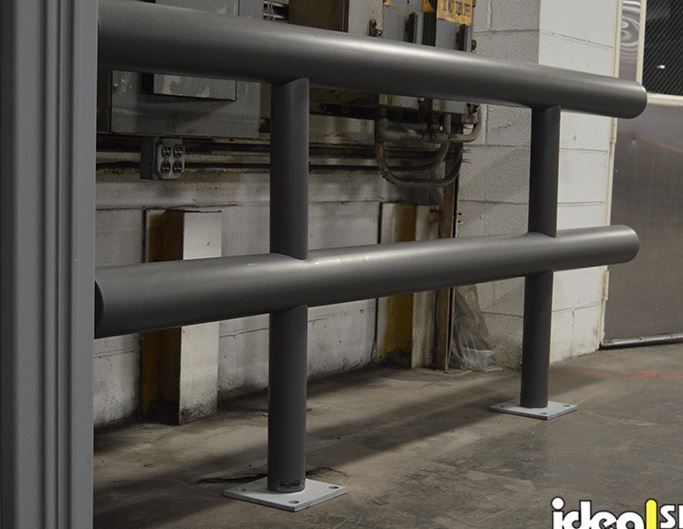

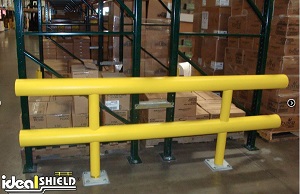

Ideal Shield Standard Guardrail System is the premier solution to protecting your facility’s most valuable assets – people and equipment. Ideal’s patented Standard Guardrail is built using 4” schedule 40 steel pipe rails and 2 1/2” schedule 80 steel pipe posts. Standard Guardrail is sleeved in a durable HDPE plastic, requiring no maintenance or painting.

Unlike traditional-welded or bolt-down systems that require the rail to be replaced after an impact, our unique design can withstand multiple impacts from a 12,000 lb forklift traveling 4 mph . When Ideal’s guardrail is hit, the shock is distributed throughout the entire section, resulting in zero deflection. Standard colors include highly visible safety yellow, and gunmetal gray – a high end alternative to galvanized rail.

Ideal Shield’s Guardrail System is easy to unload and install because the units arrive on site fully assembled, saving you time and money. Railing is available in a variety of sizes, heights and mounting options. Manufacturing the system in the USA allows us to make custom protection for any application.

The Ideal Advantage:

  • Optimum protection for workers and expensive facility equipment
  • Standard Guardrail can withstand multiple hits from a forklift traveling 4 mph
  • Our zero-deflection design allows you to maximize floor space
  • Surface-mount, core-in and removable installation options available
  • Standard sizes and heights in stock with custom configurations available upon request
  • This virtually maintenance-free, never paint again system will keep your facility looking clean and new
  • Units arrive fully assembled, allowing for easy unloading and reduced installation costs


Made Of:

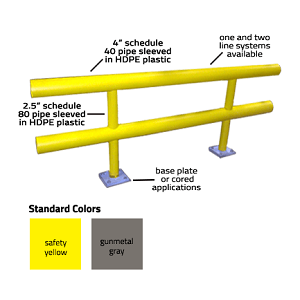

Pipe Post: 2 1/2" diameter schedule 80 pipe Pipe Rails: 4" diameter schedule 40 pipe

Sleeved In: High-Density Thermoplastic Polyethylene (HDPE) with ultra-violet and anti-static additives

Standard Colors: Safety Yellow Gunmetal Gray

Two Line Stock Unit Sizes:

Overall Heights Available: 27", 36" & 42"

Overall Lengths Available: 48’’, 72’’, 96’’ & 120’’

Base Plate Size 8” X 8’’ X 1/2’’

Ships via Truck Freight
