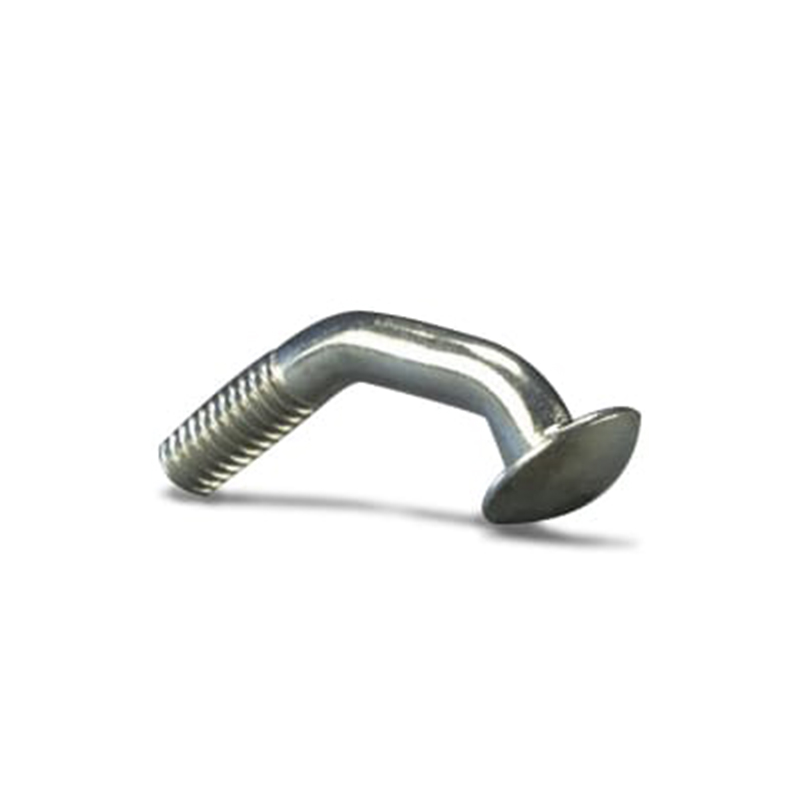

Square Post Corner Bolt

Square Post Corner Bolt

Corner bolts are used to secure a square anchor post to the square sign post, or to secure a sleeve to both the anchor post and sign post. Requiring only a single wrench, the corner bolt provides a tighter more stable installation by concentrating tension on only one corner of the tubing. Corner Bolt should always be attached to the corner farthest from traffic.

Features:

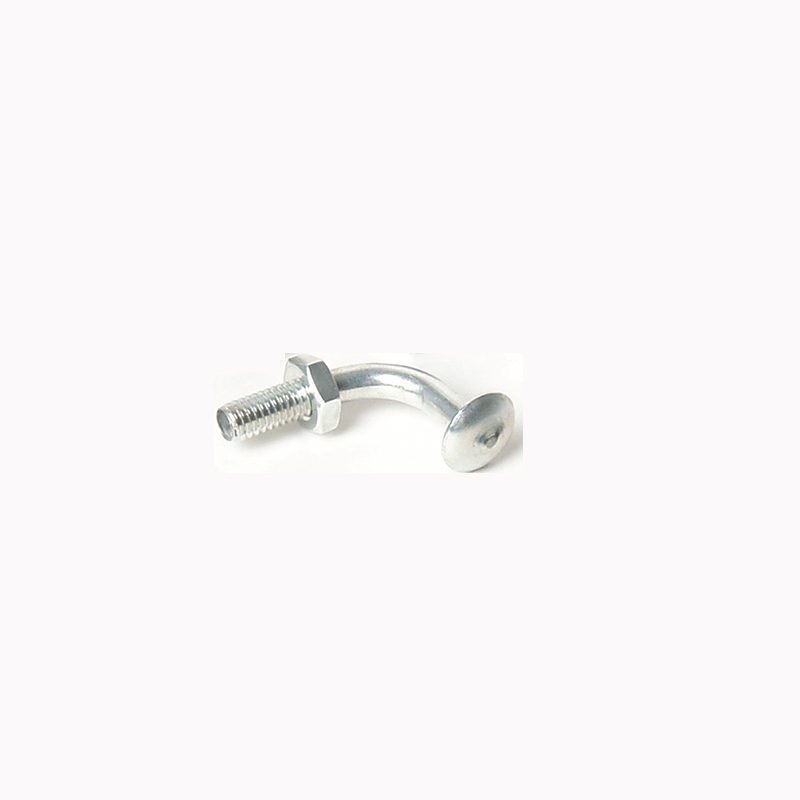

• Corner bolt with hex nut.
• To connect anchor & square post together.
• For use in 1 ¾” and 2” anchor post.
• 1 Bolt with Hex Nut needed per post.

Options

• VC1682 is compatible with 1 3/4" Square Post and is 2 1/4" in length and just under 7/16" in diameter.
• VC1683 is compatible with 2" Square Post and is 2 1/2" in length.
