Enhancing Safety with Reflective Sheeting: A Guide to Sign Visibility
Ensuring sign visibility is paramount for road safety, especially in critical areas like construction zones, school zones, and pedestrian zones. Advances in reflective sheeting technology offer superior solutions to significantly decrease the likelihood of accidents. To understand how these innovations work, let's explore key terms and concepts related to retroreflectivity and sign visibility.
Understanding Retroreflectivity and Sheeting
At the core of visible signs is retroreflectivity. This term refers to a material's ability to reflect light directly back to its original source. The higher a material's retroreflectivity, the more visible the sign will be, particularly in low-light conditions.

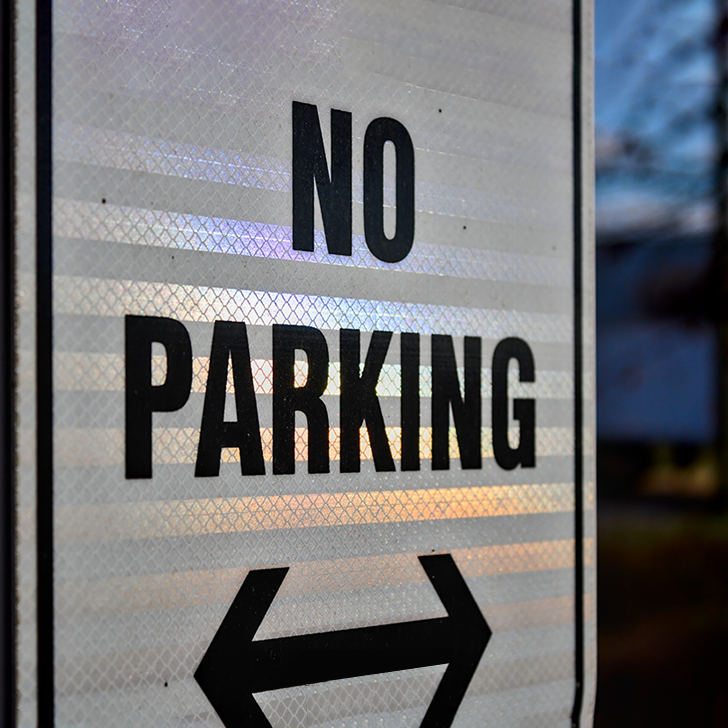

The sheeting is the reflective material applied to the front of a sign's substrate. It is crucial in determining both the sign's retroreflectivity and its durability. Most traffic signs are legally required to be reflective, adhering to regulations set by the Manual on Uniform Traffic Control Devices (MUTCD) and OSHA safety requirements.
Grades of Reflective Sheeting for Optimal Visibility

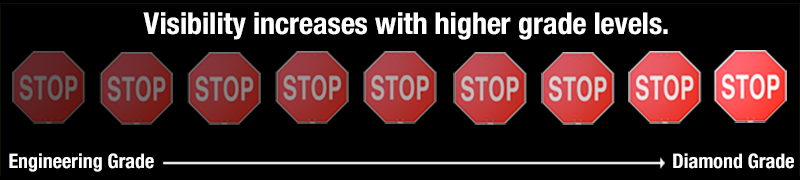

The Federal Highway Administration (FHWA) has established regulations that dictate the types of reflective sheeting used on traffic signs. While Engineer Grade reflective sheeting was once standard, newer, more advanced materials are now preferred for enhanced visibility. These include High-Intensity (Prismatic) Reflective Sheeting and Diamond Grade Reflective Sheeting.
If you are shopping for aluminum traffic signs, roll-up signs, or delineators, here are some common sheeting grades that you may come across, along with their uses and typical night-time visibility measures:

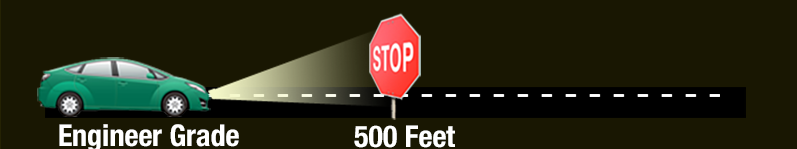

Engineer Grade Reflective Sheeting (ASTM D4956 Type I):
- Visibility: Approximately 500 feet.
- Description: This enclosed film or lens uses glass beads or prismatic optical technology. Often used for non-critical street and road signs like parking signs or way-finding signs, offering less reflectivity than other types. Standard colors include white, yellow, red, blue, green, and brown.
- Versatility: Ideal for reflective stickers and decals due to its printability with digital and screen-printing methods, and it's also useable with die cutters or vinyl plotters for custom shapes.
- Adhesive & Durability: Features an aggressive acrylic adhesive that is difficult to remove without heat. Most films have a 5–7-year outdoor durability warranty and are not considered "long-term use" materials.

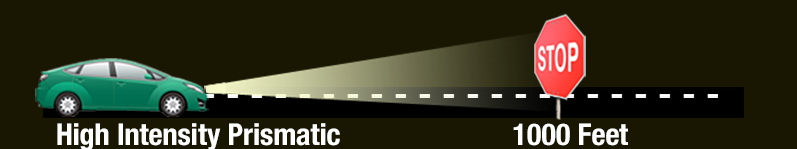

High Intensity Prismatic (HIP) Sheeting (ASTM D4956-09 Type III & IV, ASTM 4956-07 Type X):
- Visibility: Approximately 1000 feet.
- Description: This non-metallized micro-prismatic lens reflective sheeting is primarily used for reflective traffic and road signs, barricades, road construction zone devices, and traffic delineators (e.g., cones, barrels). It's highly reflective day and night, with a durable topcoat that protects against scratches and abrasion.
- Durability & Colors: Used for more permanent traffic signs and work zone devices, typically lasting about 10 years. Available in white, yellow, red, orange, blue, green, and brown.
- Environmental Impact: The manufacturing process is considered "greener," producing 97% fewer VOC emissions and using 72% less energy than engineer grade sheeting.
Diamond Grade Reflective Sheeting (DG3) (ASTM Type XI):
-
- Visibility: Approximately 1500 feet.
- Description: This full cube prismatic reflective sheeting is designed to return almost 60% of available light to drivers, nearly double that of HIP sheeting. It's becoming the standard for critical traffic control signs (like Stop signs and speed limit signs) and may see increased requirements with pending US legislation.
- Application & Colors: Applied to aluminum sheeting using a pressure-sensitive adhesive. It can be decorated via screen printing or transparent films. Stock colors include white, yellow, orange, red, green, blue, and brown, with fluorescent yellow green also available for school zones due to its superior daytime and nighttime luminescence.
- Optimized for Modern Vehicles: Engineered to reflect newer vehicle headlights and provide greater luminosity for older drivers and truck drivers, improving visibility at greater distances.
Choosing the Right Reflective Sheeting for Your Project
-
Traffic Safety Warehouse offers a comprehensive assortment of Engineer Grade products, High Intensity Prismatic Sheeting products, and Diamond Grade Sheeting safety products. Our inventory includes essential traffic safety equipment such as barricades, channelizers, and pavement tape.
If you have questions about selecting the most appropriate grade of reflective sheeting for your specific project, don't hesitate to contact us. Our experts can help you ensure your signs meet all safety standards and provide optimal night-time visibility.
-
