HYDROCADE™ Water Filled TL-3 Barricade System (72" x 32")
Detailed Description
HYDROCADE™ Water Filled TL-3 Barricade System (72" x 32")

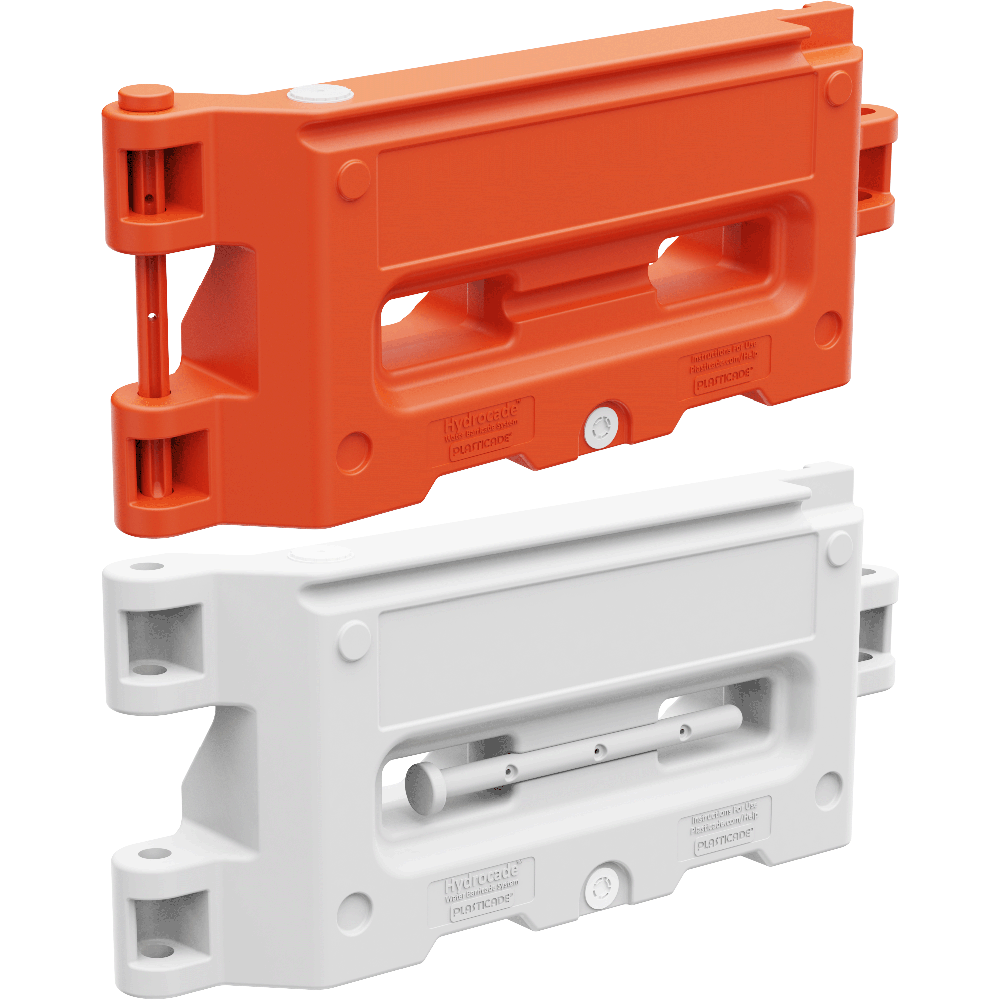

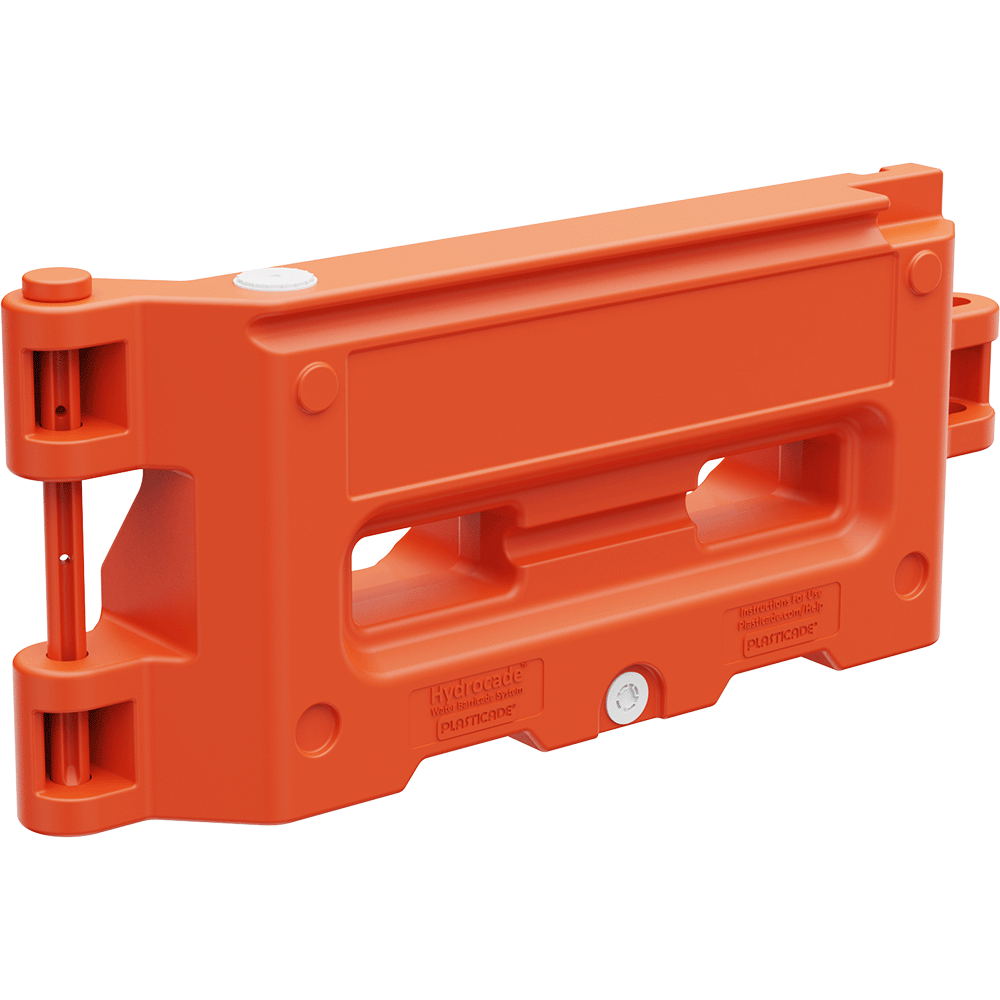

The new Plasticade Hydrocade delivers the perfect balance of durability, visibility, stackability, and quick deployment – everything you need in a modern water-filled barricade. This water-filled barricade system can be used as a TL-3 longitudinal traffic channelizing (LTC) device. Constructed with high-quality, medium-density polyethylene plastic that is durable and resistant to splitting, cracking, and deterioration – even in inclement weather. Barricade is lightweight when empty for easy transport and placement without heavy equipment yet provides excellent stability and impact absorption when filled with water.

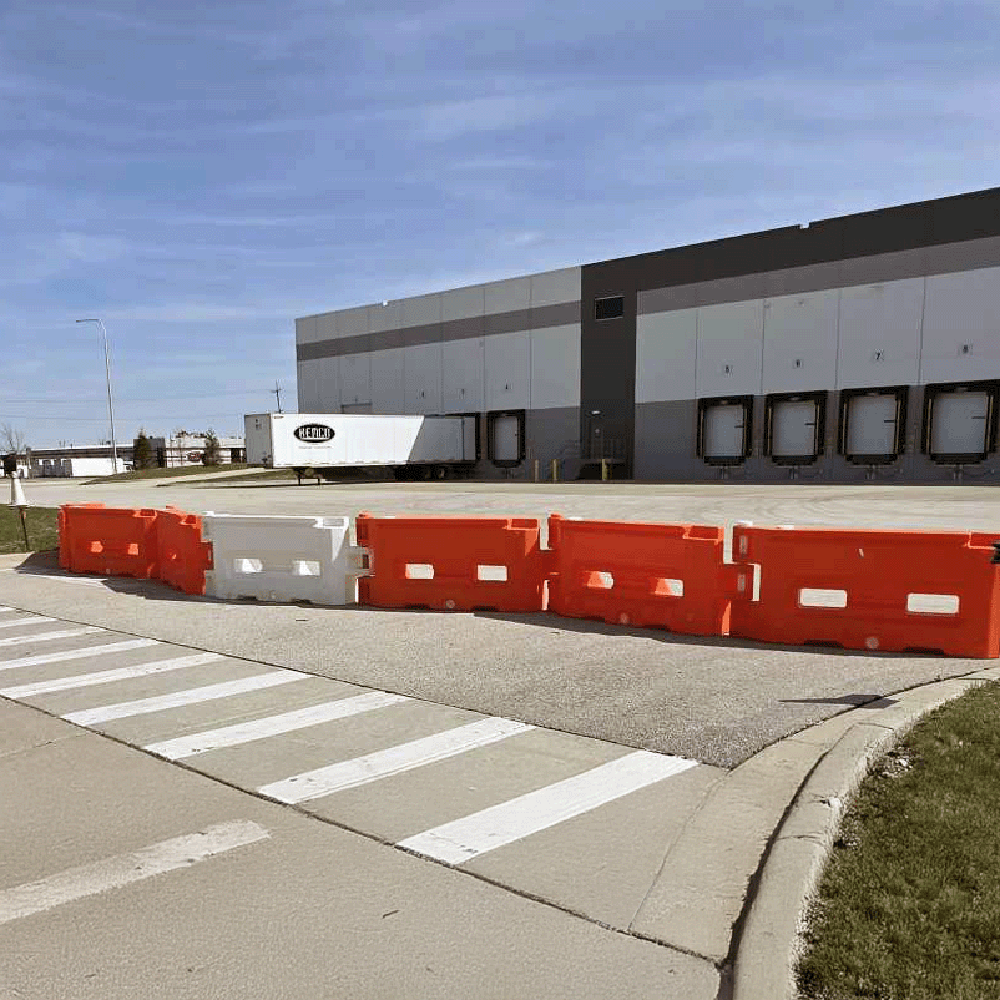

Applications for this patent-pending evolution in LTC devices include: construction areas, work zones, crowd control, temporary roadblocks, public works projects, special events and sporting events, traffic channelizing and control, security, pedestrian protection, warehouse logistics, retail and outdoor dining safety, towing, construction, towing impound yards, retail pickup areas, and government security.
Features:

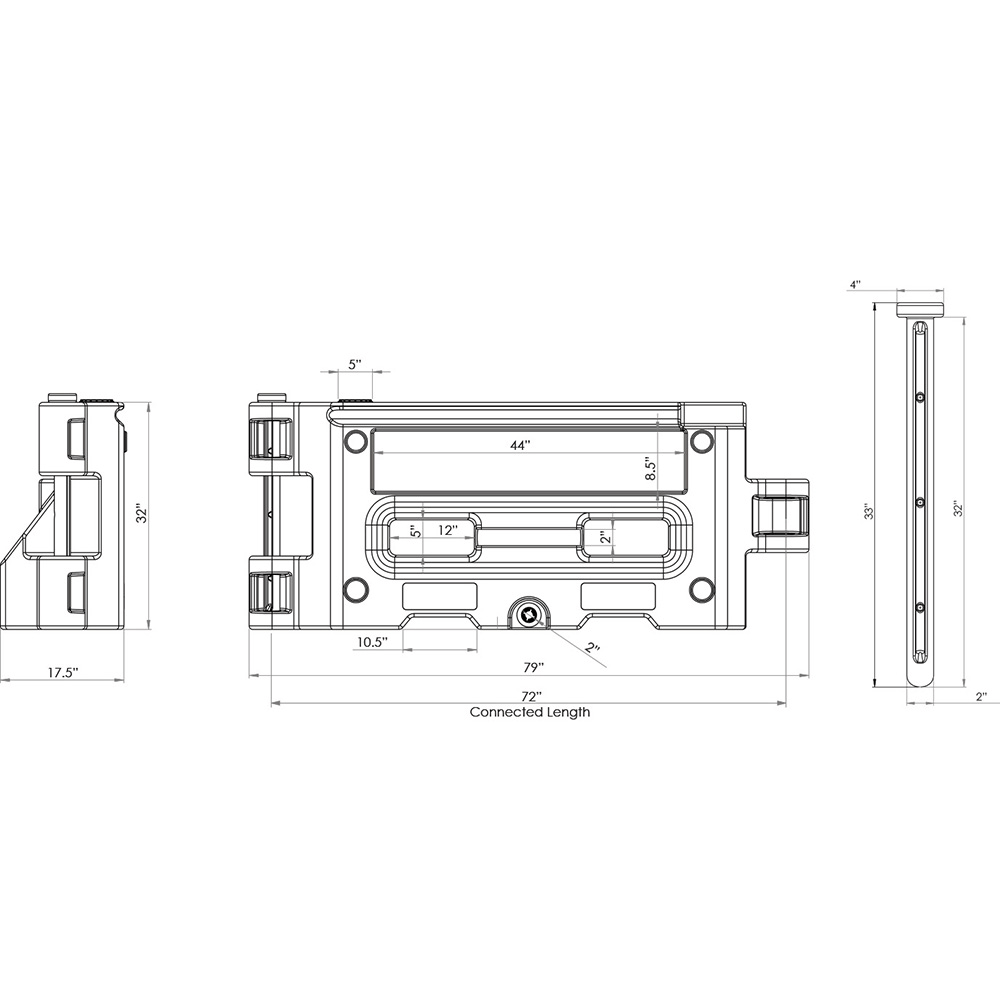

72" L x 32" H (when connected) longitudinal channelizing device.

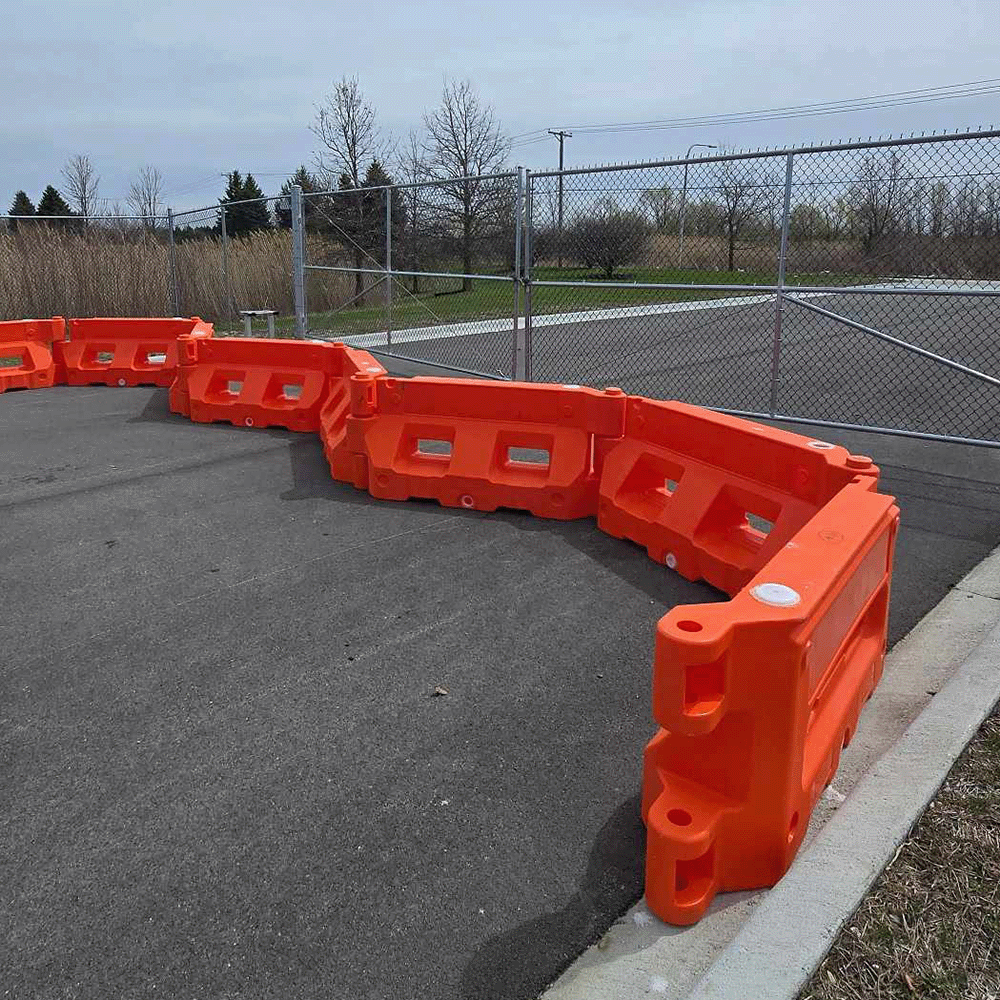

Conforms to any roadway design. Connect units with innovative pin-and-loop system.

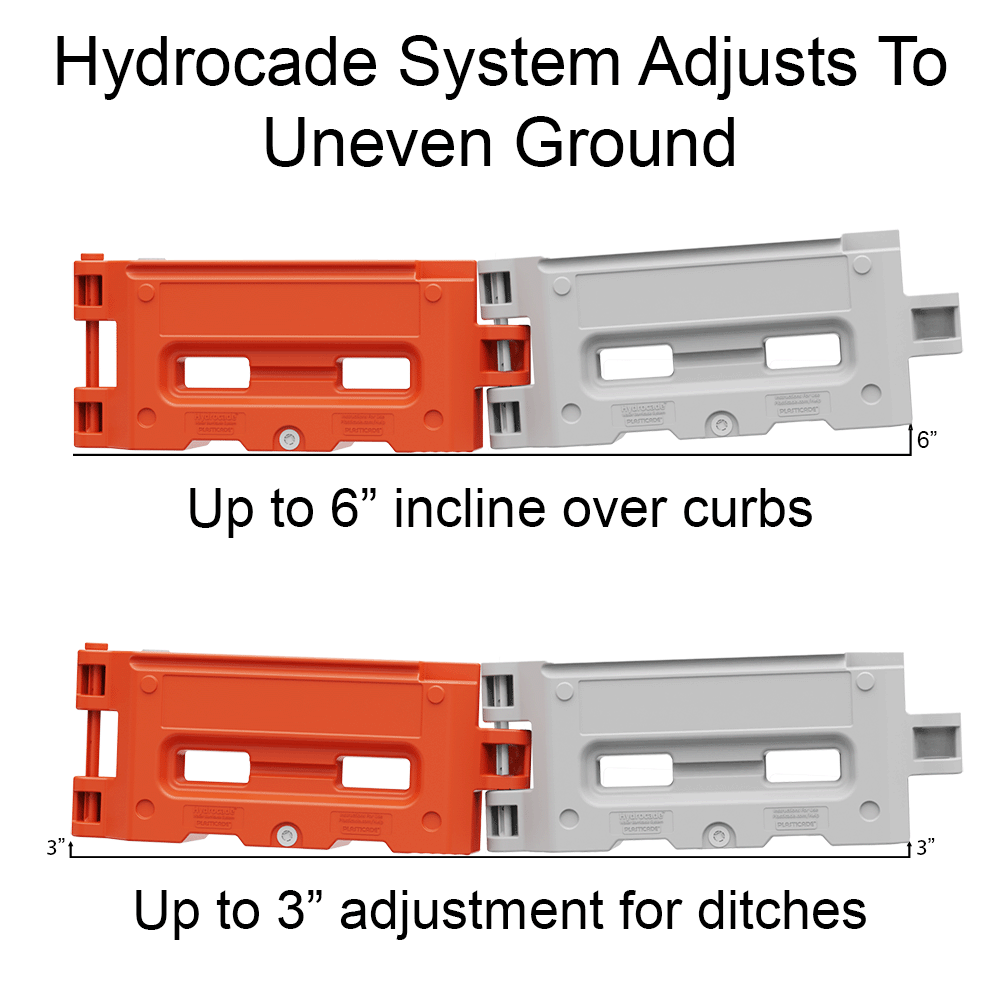

Hinged assembly allows for flexible pivots of up to 90 degrees, up to 6° incline over curbs, and up to 3° decline for ditches.

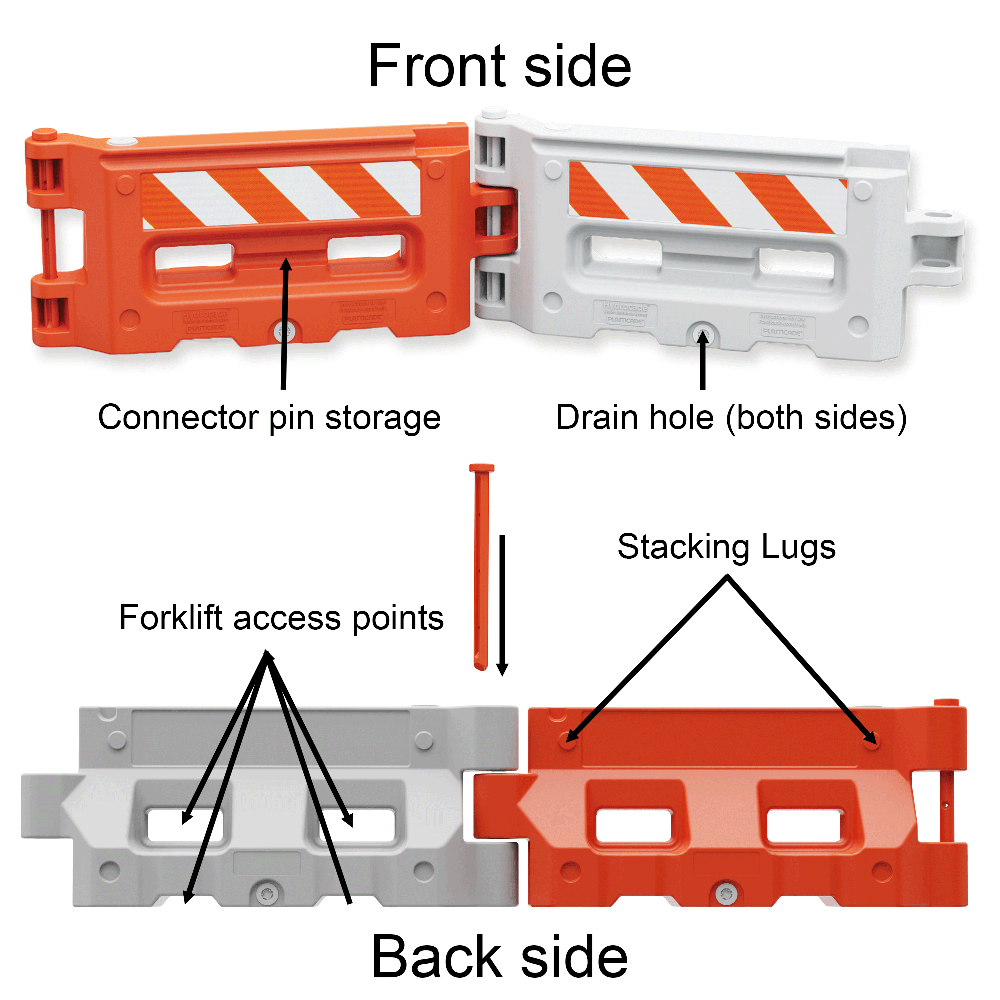

Sturdy connector pins snap onto barricade center:
Pins securely snap-in- place for storage
No more missing connector pins!
Simplifies setup – fast and effortless
Pins built with strength-enhancing channels
Lightweight and stackable when empty.
Unique stacking design allows for up to 50% more units per truckload than other water-filled barriers, making shipment and deployment more efficient.
Stacking lugs keep stacked units from sliding.
Flat obstruction free side, designed to eliminate pedestrian trip hazards.
Water fillable to increase weight and impact absorption capability.
Two forklift access areas for transportation and placement while filled.
Fill with 81 gallons of water for LCD deployable weight of 745 lbs.
Fill to the start of center forklift holes. (See Instructions PDF below.)
Every unit is leak tested.
Quick assembly and breakdown.
Drum bung/plug wrench to fit ¾" and 2" bungs required for removal and tightening of drain plug (sold separately).
Accepts optional fence panels in place of connector pins.

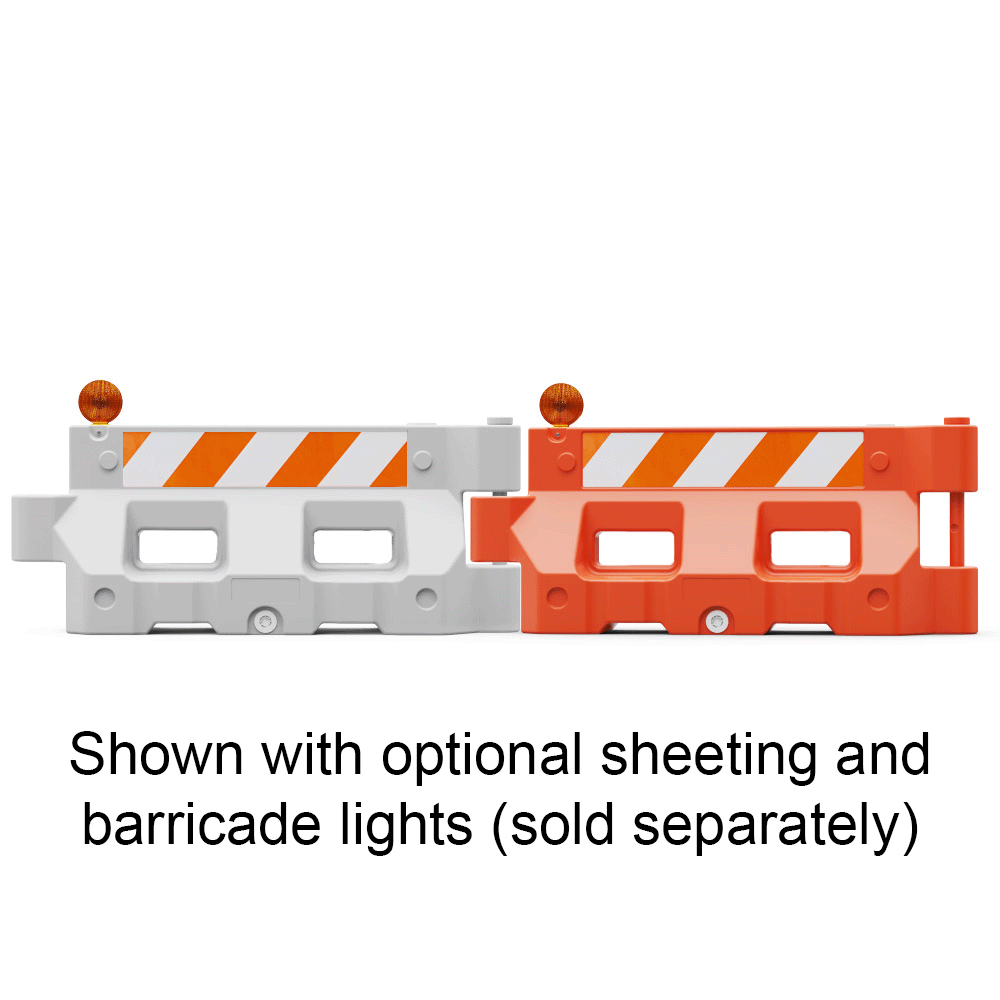

Available with optional 44" x 8" orange reflective striped sheeting on both sides in Engineer Grade or High Intensity Prismatic Grade. (Contact us for quote.)

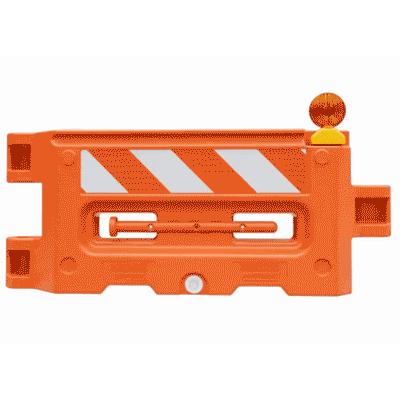

Molded-in light shelf for standard barricade light (sold separately); requires 5.5" bolt.
Patents pending.
Made in USA.
Accessories:
Accessory
Description
Item Number

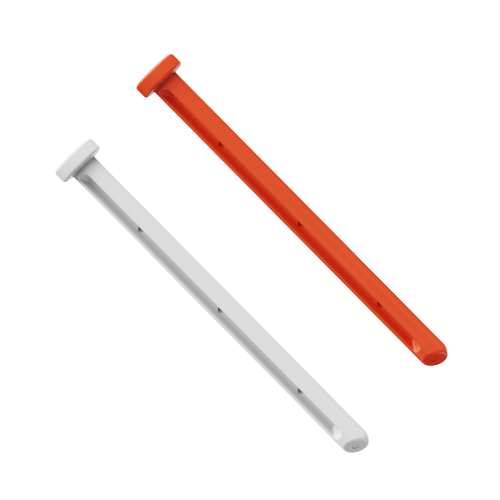

Replacement Hydrocade Connector Pin
White, 1.8 lbs.
HYD-PIN-W
Orange, 1.8 lbs.
HYD-PIN-O
Fence Panel
One panel is needed for each Hydrocade unit. 67" W x 51" H x 1.3" D pipe.
569
Fence Post
One post is needed for each Hydrocade unit plus one additional post for last unit in line. 96" L x 1.66" diameter.
568

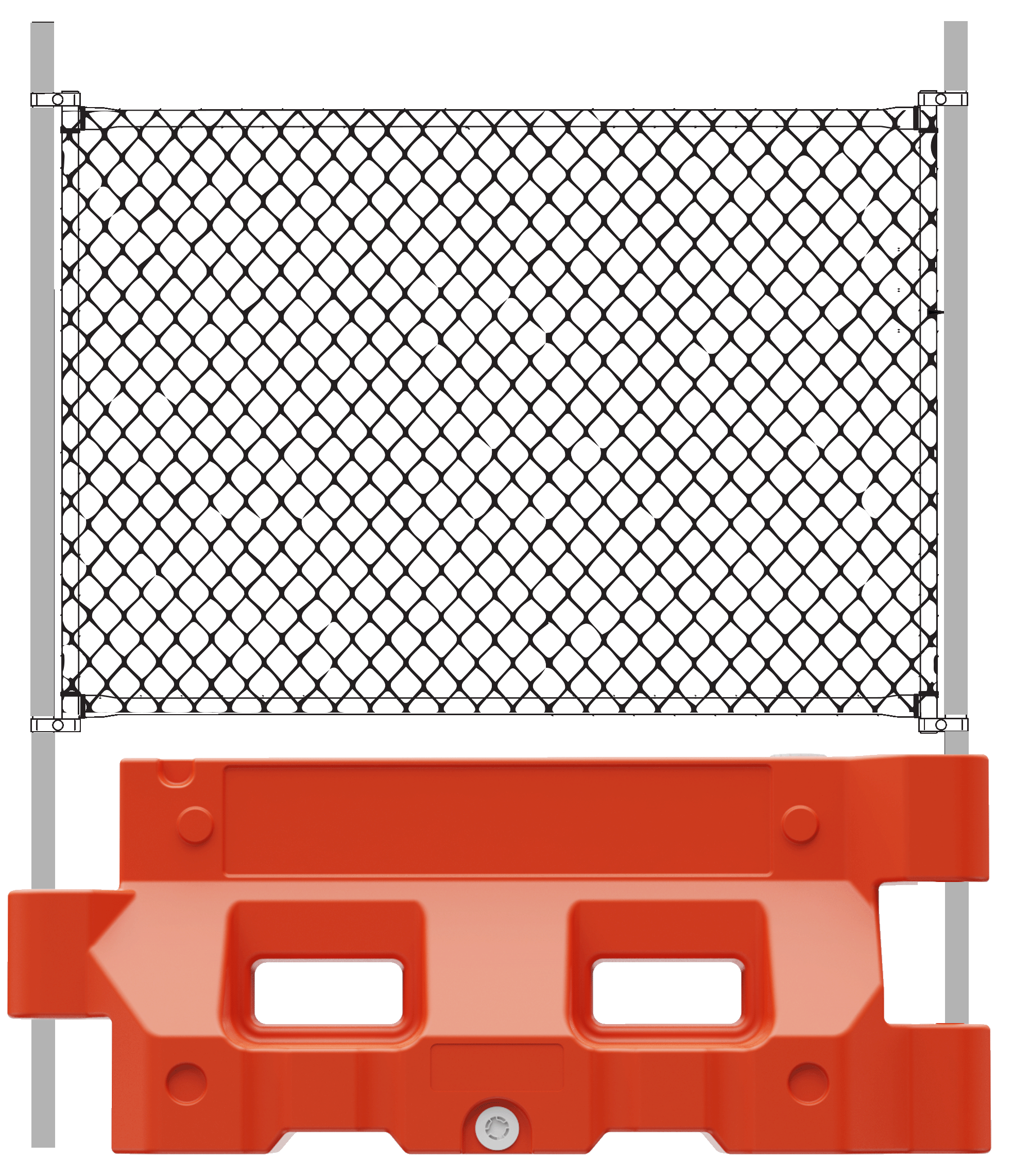

Fastener Kit Box for Hydrocade Fencing
One kit is needed for each Hydrocade unit. Kit includes:
4 hex bolts
4 nuts
8 retainer plates
573-KIT
Barricade Light Kit for Hydrocade
Includes 5 1/2" - 13 hex bolt with standard Type A/C 3 Way D Cell light 8072.
8072-BOLT5KIT

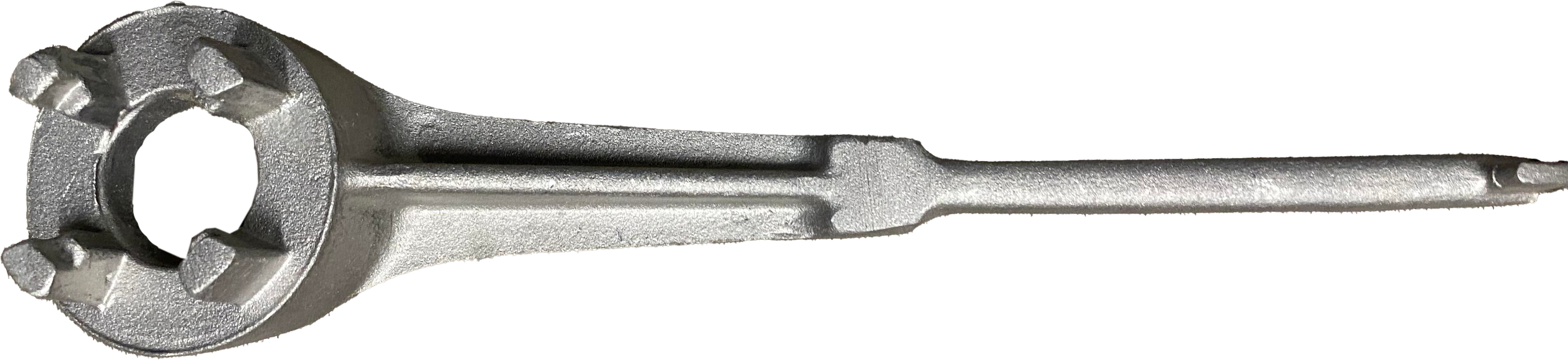

Drum Bung/Plug Wrench
Use for removal and tightening of drain plug. Fits 3/4" and 2" bungs.
HYD-WRENCH

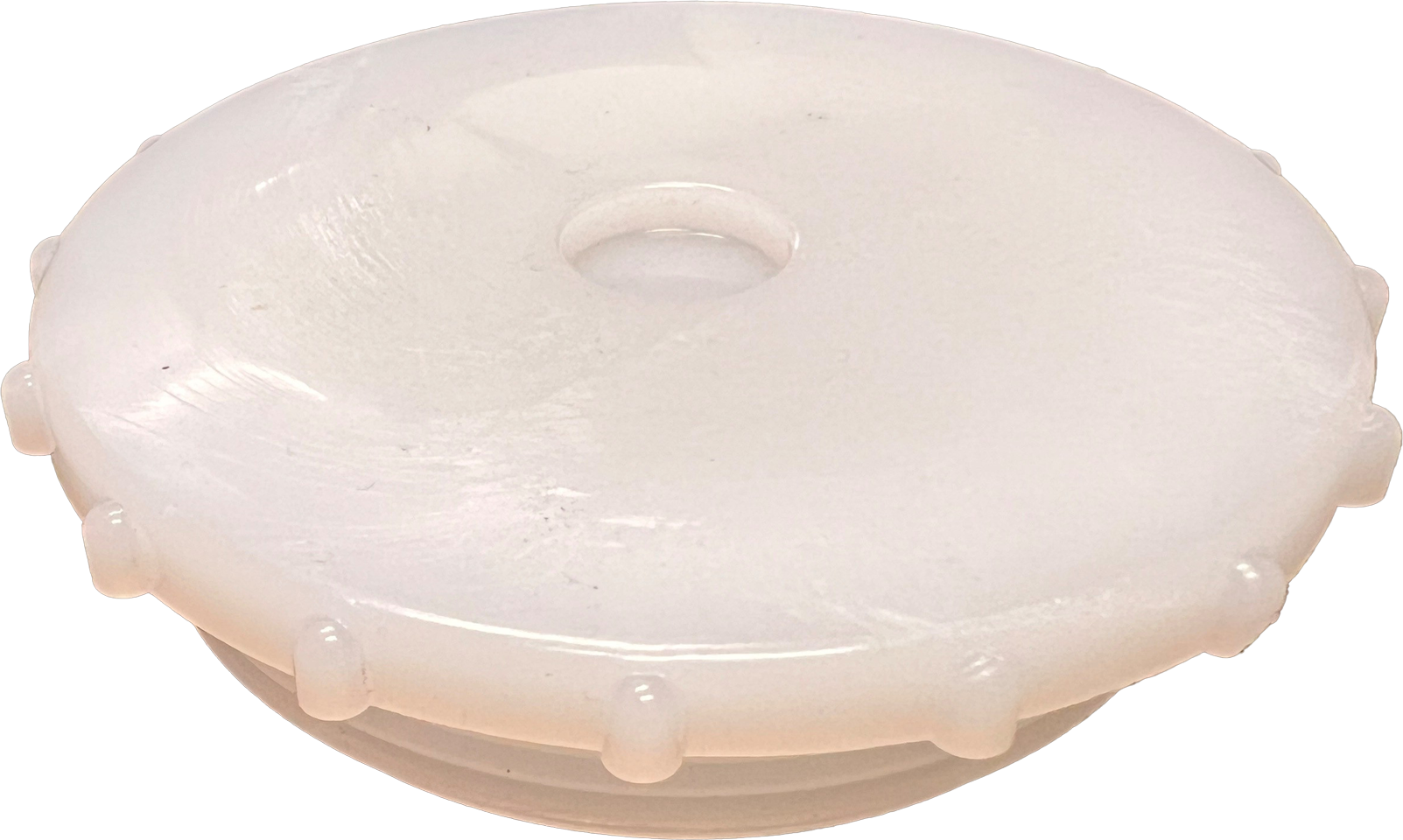

Replacement Hydrocade Fill Cap
3" screw-on, top fill cap.
8374

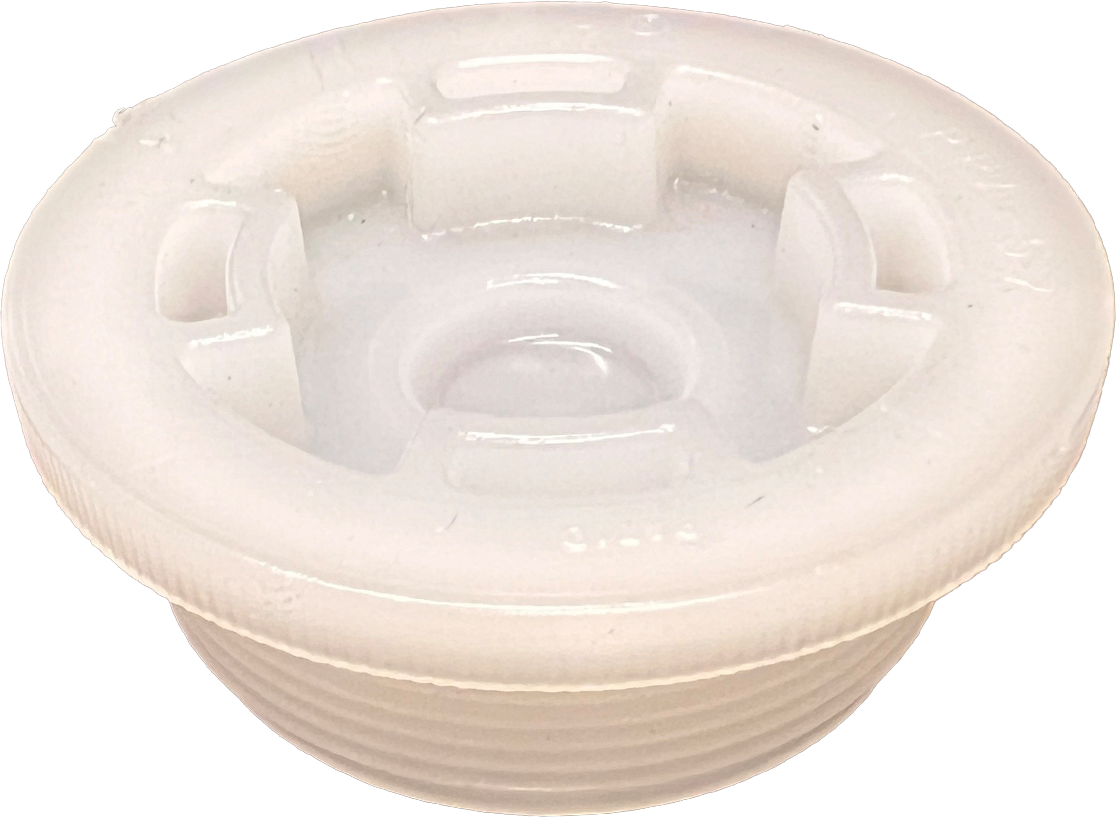

Replacement Hydrocade Drain Plug
Drain plug cap & seal
8219
Standards & Testing:
Crash tested for Test Level 3 MASH Acceptance, with letter submitted to FHWA.
TL-3 in the Manual for Assessing Safety Hardware signifies that a roadside safety feature has been successfully crash-tested under the specified conditions for that level.
TL-3 testing involves impacts with both a 2,425 pound passenger car and a 5,000 pound pick-up truck, both traveling at approximately 62 mph.
Meets MUTCD Standards.
This device is not a barrier and should not be used where a re-directive device is required or desired. (Re-directive devices are reinforced with steel bars, which the Hydrocade lacks).
Shipping Information:
Contact us for lead time and a shipping quote.
Barricades feature a unique compact stacking design in the truck that increases number of units in a truck by 50%, saving on shipping expense.
8 units/pallet and 200 units fit in a 53’ truck.
Truck delivery will require handling on customer’s end to offload truck.
