Guide Light - Set of 2


Guide Light - Set of 2
Additional Images to View
Item Number: DGLED
  Be the first to review this item
Select Size/Color/Options:
Quantity

Detailed Description

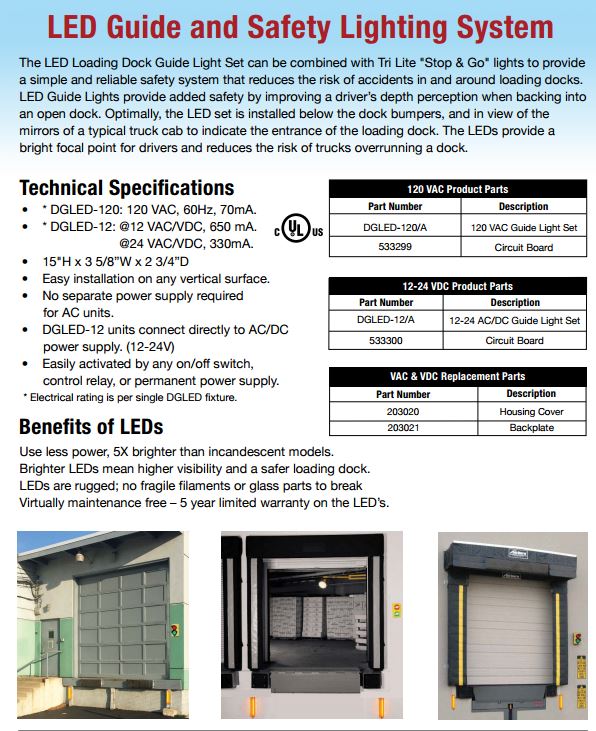

Tri Lite LED Loading Dock Guide Light Set provides drivers with a visual target to align a truck trailer with the dock door. The Guide Light Set is especially useful in low-light environments like enclosed dock bays, but is bright enough to improve visibility of the dock opening even in daylight! The guide lights may also be installed inside the building to mark the door openings for forklift operators and other warehouse personnel.

Key Features:

  • Long-life LEDs reduce replacement costs and down time.
  • High impact polycarbonate housing resists shocks and vibrations.
  • Uses 50 bright LEDs per light fixture.
  • 120 VAC units are UL and cUL listed.
  • Made in the USA.

Technical Specifications:

• * DGLED-120: 120 VAC, 60Hz, 70mA.

• * DGLED-12: @12 VAC/VDC, 650 mA.

• 15"H x 3 5/8”W x 2 3/4”D

• Easy installation on any vertical surface.

• No separate power supply required for AC units.

• DGLED-12 units connect directly to AC/DC power supply. (12-24V)

• Easily activated by any on/off switch, control relay, or permanent power supply.

* Electrical rating is per single DGLED fixture.

Benefits of LEDs:

Use less power, 5X brighter than incandescent models. Brighter LEDs mean higher visibility and a safer loading dock. LEDs are rugged; no fragile filaments or glass parts to break Virtually maintenance free – 5 year limited warranty on the LED’s.



Installation Instructions for 12-24

Installation Instructions for 120
