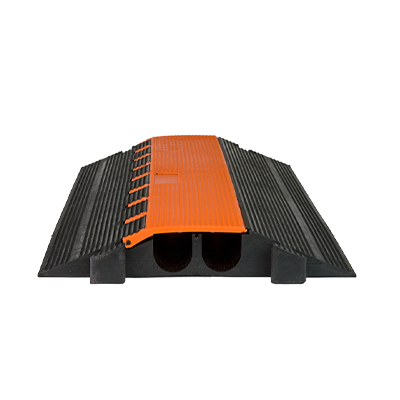

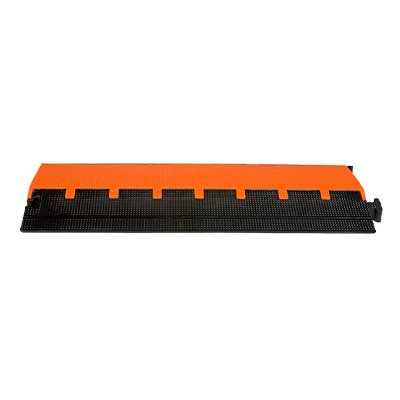

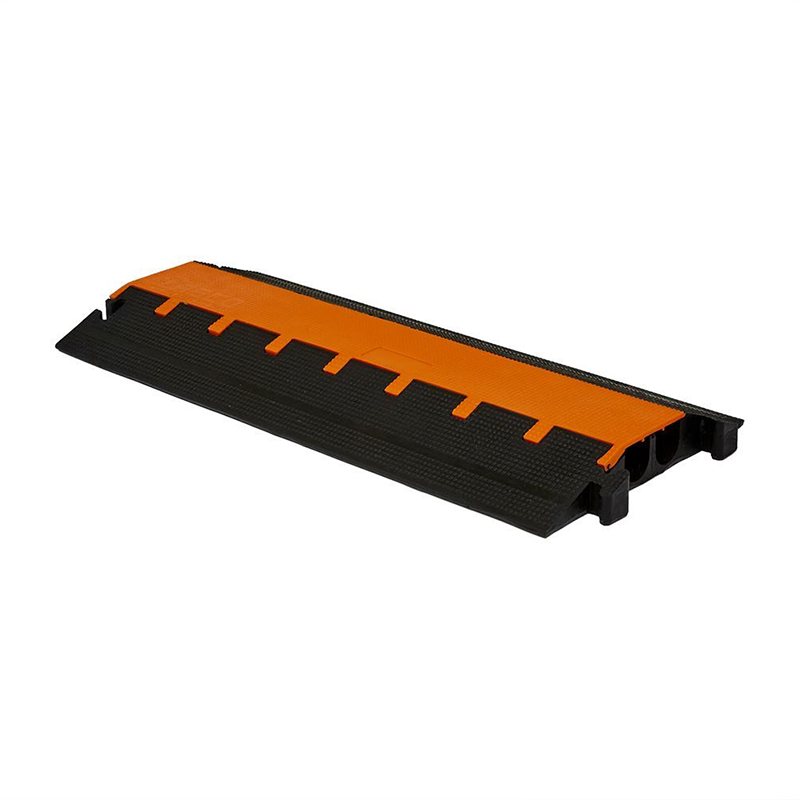

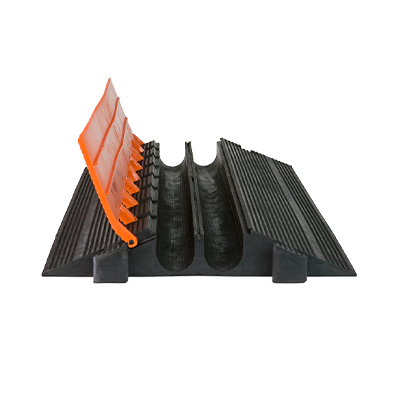

Safely protect important cables, hoses, and pipes in high traffic areas with Elasco MightyGuard Cable Protectors. Cable protectors offer 360° protection and give the user access to their cables by opening and closing the lid on top. The MightyGuard series contains heavy-duty cable protectors appropriate for pedestrian and large vehicle traffic, including medium-sized loaders, dozers, and other construction equipment. Helps prevent foot traffic from accidentally tripping over loose cables. Elasco’s premium, industrial-quality, 36" cable guards are made from solid-cast polyurethane, which is stronger and more durable than typical injection-molded polymers because the hot-cast process provides a long, slow cure and post-cure that enhances the cross-linking of the polyurethane molecule. The MG2200 model includes two rounded 2" channels capable of protecting a multitude of pipes or wires. Strong enough to protect cables from vehicle traffic, supporting up to 16,500 lbs. per tire.
Features:
Heavy-duty protection from pedestrian and large vehicle traffic, up to 16,500 lbs. per tire.
Manufactured from solid-cast polyurethane, with better strength, durability and longevity compared to rubber, plastic, and metal.

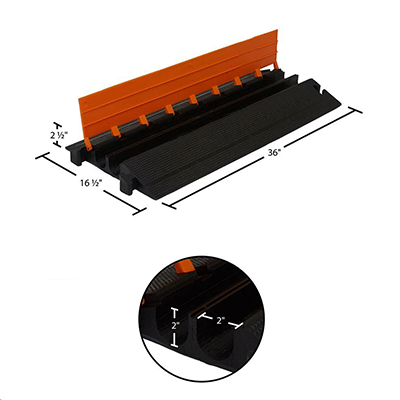

Protects cables, pipes, and hoses under 2" in outside diameter.
Includes two channels to accommodate multiple cables and wires, allowing segregation of cables from one another (which may be imperative based on electrical current or other requirements).
Lid closes into the base of the product, with flush hinges, for less failure from continued use.
Reinforced fiberglass hinge pin rod provides durability and strength to lid hinge, which will never corrode, rust, or break.
No painting or maintenance required; holds up in all weather conditions. Safely withstands extreme conditions ranging from -40℉ to 120℉.
Non-slip surface tread design to minimize trips and falls.
Interlocking design with connectors at both ends allows multiple cable covers to be connected to cover a larger area.
Manufacturer lifetime warranty against defects in workmanship and materials.
Compliant with safety regulations including NEC and OSHA.
Elasco MightyGuard Series Features & Benefits
Elasco Cable Protector Instruction Manual
MG2200 Technical Drawing
