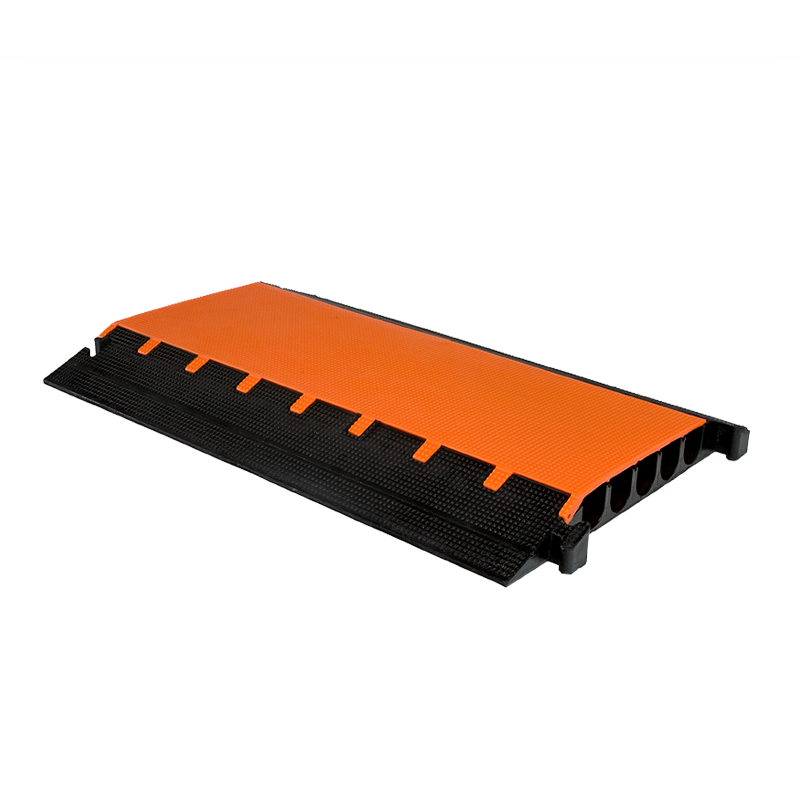

Heavy Duty 5 Channel Cable Protector
This Elasco Mighty Guard 5 channel cable protector provides 2 inches in channel width and provides 15,750 lbs load bearing capacity per tire. As part of the Mighty Guard Collection, this cable guard offers extra load bearing capacity and is strong enough to stand the test of time. The 5 channel protector is constructed with a solid cast polyurethane base and lid, connected by a reinforced fiberglass rod so that it won’t rust or corrode. The cable protector will hold up against natural and man-made elements and is compliant with standard safety requirements. It is easy transportation and very quick to install. The cable protector is backed by a lifetime warranty and made in the USA.
Cable Protector Details:
- Channel: 2"W x 2"H
- Overall: 37"L x 24"W
- Weight: 38.50 lbs
- Load Bearing Capacity: 15,750 lbs per tire
- Polyurethane Product - Compared to other materials such as Rubber, Plastics, and Metals, Polyurethane offers the best product characteristics.
- Polyurethane is not biodegradable, has stronger abrasion and corrosion resistance, higher load bearing capacity, less likely to crack, and has more customization potential in material hardness and color
- Solid Cast Manufacturing - Offers superior physical properties to injection molding resulting in a stronger product
- Operating Temperature - Resistant to the fiercest elements withstanding anything from blizzards to heat waves
- Maintenance - Easily cleaned and abrasion resistant to the elements
- Fiberglass Rod* - Reinforced fiber glass rod which will never corrode, rust, or break
- Surface Pattern - Ultimate slip resistant pattern to minimize slips and falls
- Connectors - Ultra strong connection points with easy & safe configuration
- Easy Transportation* - Built in handles underneath base for easy transportation
- Safety Colors* - Standard colors come in black base and orange lid making products easily noticeable by pedestrians and drivers
- Configuration Options - Various products come with a variety of turns and end sets for easy and safe configuration
- Compliant - Dully Compliant with NEC, OSHA, REACH, and RoHS
Specifications:
|
|
|
|
|
|
|
Component
|
primary unit
|
90° left-angle
|
90° right-angle
|
4-way intersection
|
|
Model number
|
MG5200
|
MG5200-90L
|
MG5200-90R
|
MG5200-X
|
|
Dimensions (all 2.5" H)
|
36" x 24"
|
30" x 30"
|
30" x 30"
|
36" x 36"
|
|
Weight
|
35 lbs.
|
35 lbs.
|
35 lbs.
|
40 lbs.
|
|
Material
|
polyurethane
|
|
Maximum capacity
|
15,750 lbs. per tire
|
|
Number of channels
|
5
|
|
Outside diameter
|
2"
|
|
Channel dimensions
|
2" x 2"
|
MightyGuard Series Cable Protectors:
|
|
Item Number
|
Dimensions
|
Maximum Capacity
|
Channels
|
Channel Dimensions
|
|
MG1200
|
36" L x 14" W x 2.5" H
|
19,000 lbs. per tire
|
1
|
2"
|
|
MG1300
|
36" L x 20.5" W x 3.5" H
|
19,750 lbs. per tire
|
1
|
3"
|
|
MG2200
|
36" L x 16.5" W x 2.5" H
|
16,500 lbs. per tire
|
2
|
2"
|
|
MG2300
|
36" L x 24" W x 3.5" H
|
12,250 lbs. per tire
|
2
|
3"
|
|
MG3200
|
36" L x 19" W x 2.5" H
|
12,250 lbs. per tire
|
3
|
2"
|
|
MG3300
|
36" L x 27.5" W x 3.75" H
|
12,250 lbs. per tire
|
3
|
3"
|
|
MG5200
|
36" L x 24" W x 2.5" H
|
15,750 lbs. per tire
|
5
|
2"
|
Cable Protectors vs. Dropovers
|
Cable Protectors
|
Dropovers
|
|
|
|
|
360° protection of cords & pipes
|
Protects from the top only; no bottom protection (sufficient for grass, sand, or similar, soft or non-abrasive surfaces)
|
|
More flexibility on an uneven surface
|
For flatter surfaces
|
|
More involved installation as cables must be laid into protector
|
Quick installation - simply “drop” the unit over cords
|
|
Easy access to cords & cables by opening lid on top
|
Need to lift dropover up to access cords & cables
|
|
Heavier load bearing
|
Typically for lighter duty protection
|
|
Offer multiple channels to segregate lines or cables from one another
|
Single channel
|
