Vendor Elasco Products |

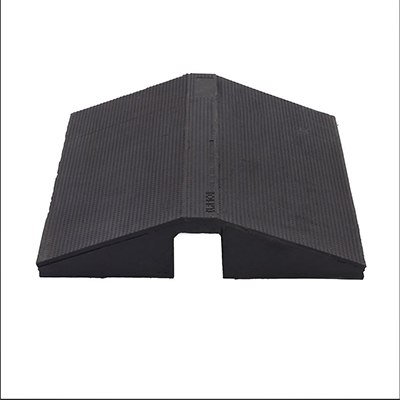

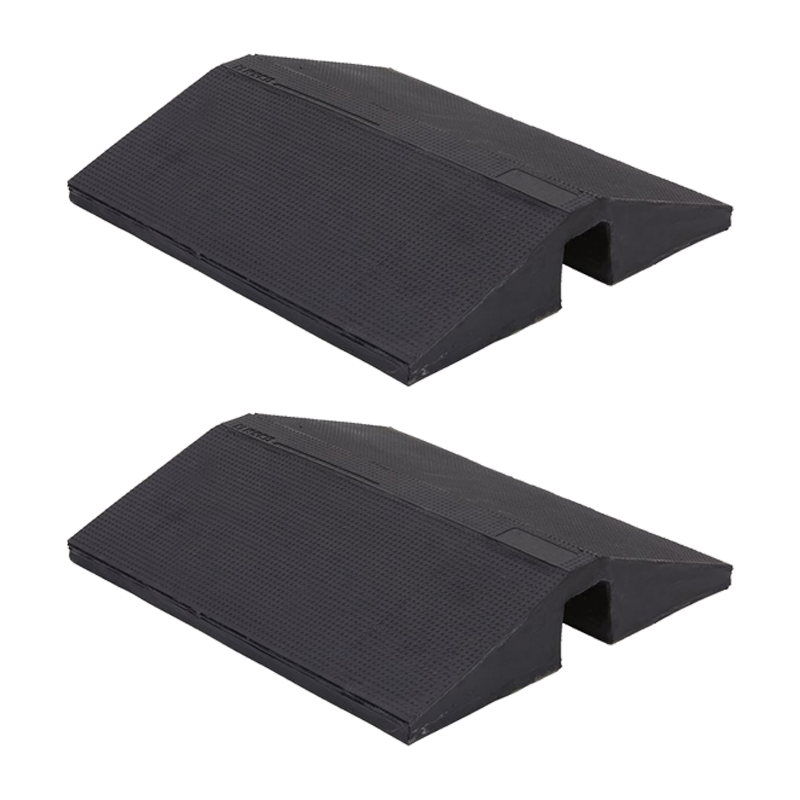

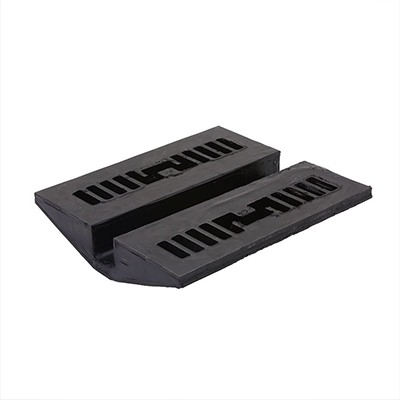

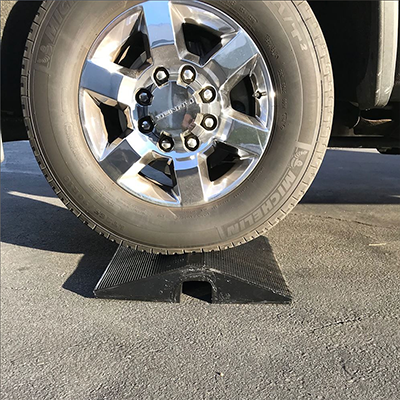

Safely protect important cables, hoses, and pipes in your most demanding environments with Elasco hose bridges. The EB13 is a set of two heavy-duty dropover hose bridges appropriate for heavy vehicle traffic, featuring a 3" channel capable of protecting a multitude of pipes or wires. This premium, industrial-quality, 22.75" cable guard set is made from solid-cast polyurethane, which is stronger and more durable than typical injection-molded polymers because the hot-cast process provides a long, slow cure and post-cure that enhances the cross-linking of the polyurethane molecule. These hefty ramps are well suited for extremely demanding job sites, such as pit mines, military applications, larger construction project sites, and similar extreme environments involving movement of heavy machinery. Strong enough to protect hoses and cables from heavy vehicles and machinery; supports up to 40,000 lbs. per tire.

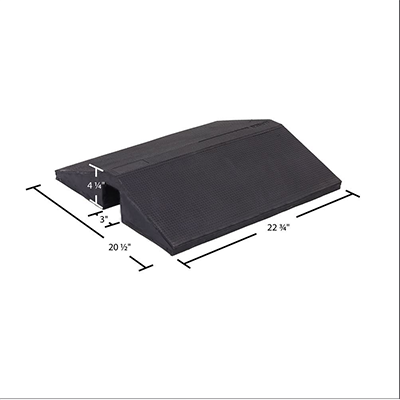

Dimensions | 22.75” L x 20.5” W x 4.25” H |
Weight | 44 lbs. |
Material | polyurethane |
Maximum capacity | 40,000 per tire |
Number of channels | 1 |
Outside diameter | 3” |
Channel dimensions | 3” |
Model number | EB13 |
