4 Channel XtremeGuard Cable Guard



Additional Images to View
Item Number: XG4400
  Be the first to review this item
$1,100.00
 Special Pricing
 Buy 5  for $1,000.00 each

Quantity

Detailed Description

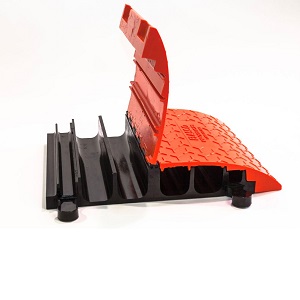

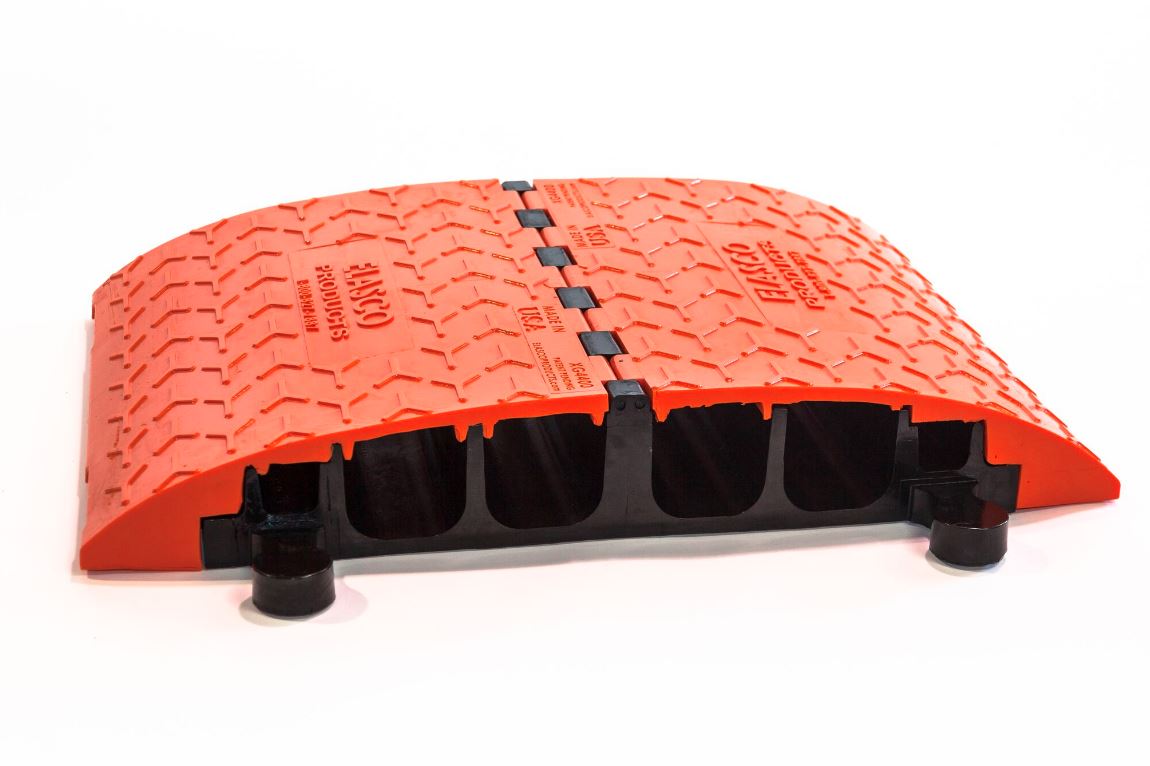

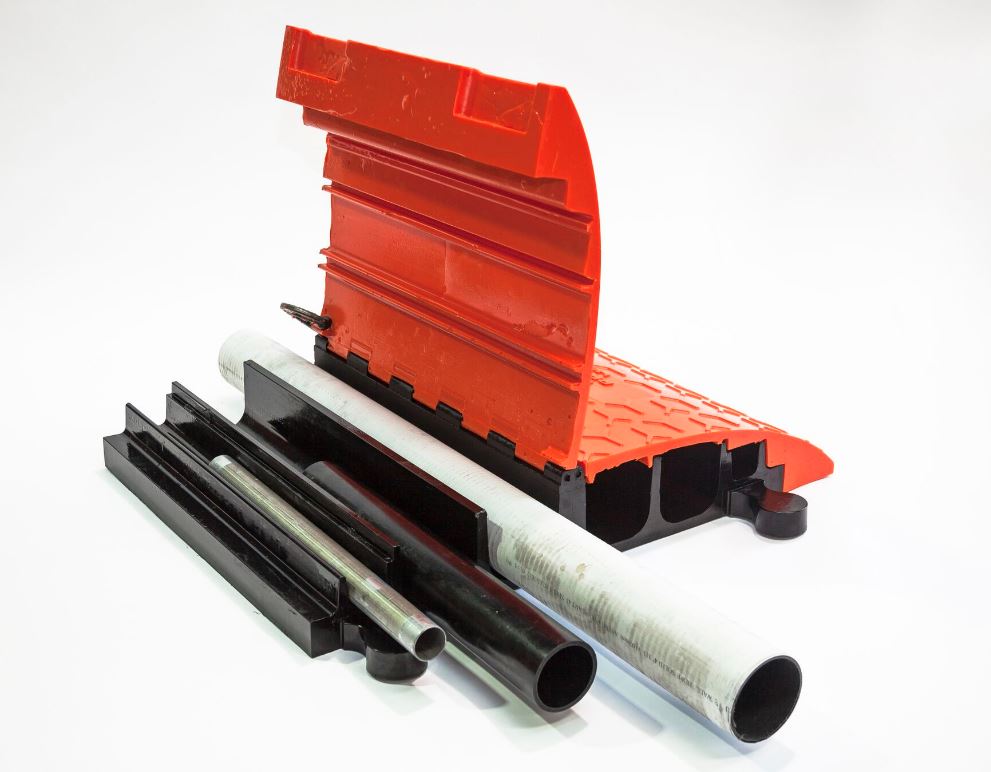

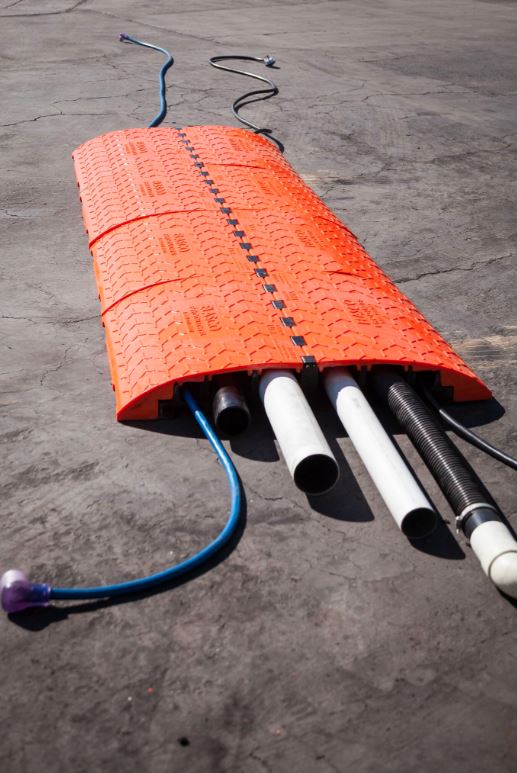

Heavy Duty Cable Protectors, 4 Channel

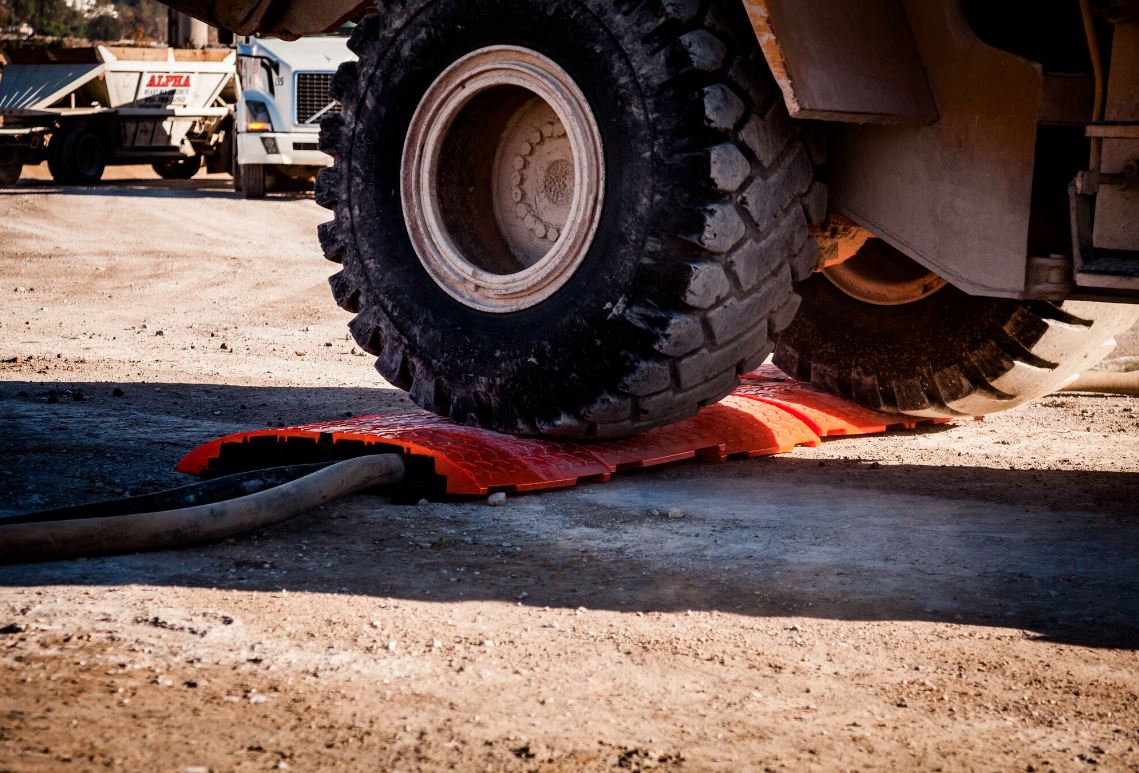

These 4 channel, heavy duty cable protectors are designed with an innovative Tread Pattern and Fish Bone Connectors to withstand load bearing of between 300-500 tons for large mining trucks. Elasco has created the first gull-wing designed cable protector in the industry which comes in 4.5 size channels. The patented gull-wing designed lid allows the lid ramp to connect to the base of the protector, giving added strength to the cable protector. The sturdy, patent-pending design enables the cable protector to withstand the highest load capacity available. It is offered in two or four channel options. Both options include bonus 2 channels in addition to an updated tread pattern and connector design. The cable protectors are made for extreme heavy load conditions in any industry and they can withstand the most brutal and demanding environments. This is a Polyurethane Product. Compared to other materials such as Rubber, Plastics, and Metals, Polyurethane offers the best product characteristics. Polyurethane is not biodegradable, has stronger abrasion and corrosion resistance. It has higher load bearing capacity, is less likely to crack, and has more customization potential in material hardness and color.

Cable Protector Details

  • Channel: 4.5"W x 2.5"H
  • Overall: 27.50"L x 40"W
  • Weight: 118 lbs
  • Load Bearing Capacity: 80,000 lbs per axle or 500 tons for mining equipment
  • Solid Cast Manufacturing - superior physical properties to injection molding resulting in a stronger product
  • Operating Temperature - Resistant to the fiercest elements withstanding anything from blizzards to heat waves
  • Maintenance - Easily cleaned and abrasion resistant to the elements
  • Fiberglass Rod* - Reinforced fiber glass rod which will never corrode, rust, or break
  • Surface Pattern - Ultimate slip resistant pattern to minimize slips and falls
  • Connectors - Ultra strong connection points with easy & safe configuration Easy
  • Transportation* - Built in handles underneath base for easy transportation
  • Safety Colors* - Standard colors come in black base and orange lid making products easily noticeable by pedestrians and drivers
  • Configuration Options - Various products come with a variety of turns and end sets for easy and safe configuration - Call to Inquire
  • Compliant - Dully Compliant with NEC, OSHA, REACH, and RoHS
