Provide 360° protection for your expensive cables and hoses from vehicle drive-overs and provide a safety crossing for pedestrians. TSW’s line of durable TPU plastic cable protectors with LLDPE plastic flip tops are rated for extreme temperatures, making them suitable for indoor and outdoor use. Flip tops make it easier to add or remove cables, and typically support heavier vehicles, when compared to drop over cable protectors.
TPU offers a high durability option when compared to our economical rubber flip top protectors. TPU (Thermoplastic Polyurethane) is an industrial-strength plastic. Compared to rubber, TPU is 10x stronger, lighter, and has a higher load bearing capacity, withstands more extreme temperature conditions, typically has a longer life than rubber, and has no rubber odor.

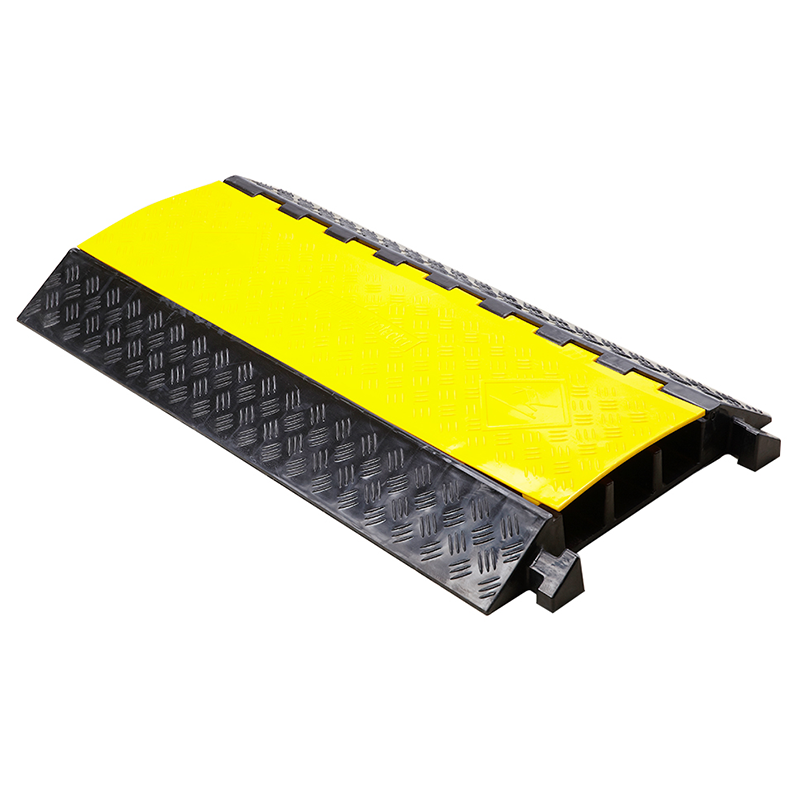

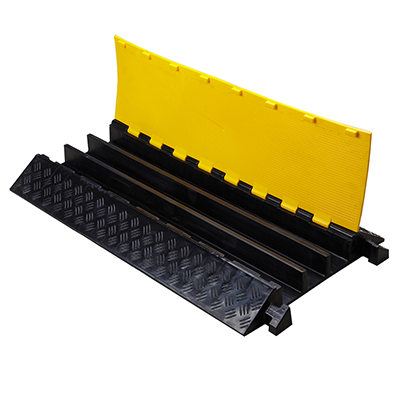

This heavy-duty triple channel cable protector has three 2.5" channels for cables, hoses, and cords. Base is made from virgin TPU for superior durability and hazard resistance, topped by a bright yellow LLDPE plastic lid. This attractive cable protector provides a safe crossing for heavy vehicles – including construction equipment! Join multiple units together to achieve desired length.
|Dimensions||35.5" L x 19.625" W x 3" H|
|Channel dimensions||2.5" x 2.5"|
|Number of channels||3|
|Weight bearing capacity||44,000 lbs. per axle|
|Material||virgin TPU base & LLDPE hinged lid|
|Type of traffic||Lbs./axle rating|
|Pedestrian traffic||not rated|
|Light vehicles (similar to ATV)||up to 2,100|
|Cars & light trucks||2,000 to 12,000|
|Heavy trucks||12,000 to 28,000|
|Construction & utility vehicles||28,000 to 40,000|
|Heavy construction vehicles||over 40,000|
|360° protection of cords & pipes||Protects from the top only; no bottom protection (sufficient for grass, sand, or similar, soft or non-abrasive surfaces)|
|More flexibility on an uneven surface||For flatter surfaces|
|More involved installation as cables must be laid into protector||Quick installation - simply “drop” the unit over cords|
|Easy access to cords & cables by opening lid on top||Need to lift dropover up to access cords & cables|
|Heavier load bearing||Typically for lighter duty protection|
|Offer multiple channels to segregate lines or cables from one another||Single channel|
